The following particulars apply to a two-row velocity compounded impulse stage of a turbine: nozzle angle 18°, mean blad

Post by answerhappygod »

The Following Particulars Apply To A Two Row Velocity Compounded Impulse Stage Of A Turbine Nozzle Angle 18 Mean Blad 1
The Following Particulars Apply To A Two Row Velocity Compounded Impulse Stage Of A Turbine Nozzle Angle 18 Mean Blad 1 (41.44 KiB) Viewed 10 times

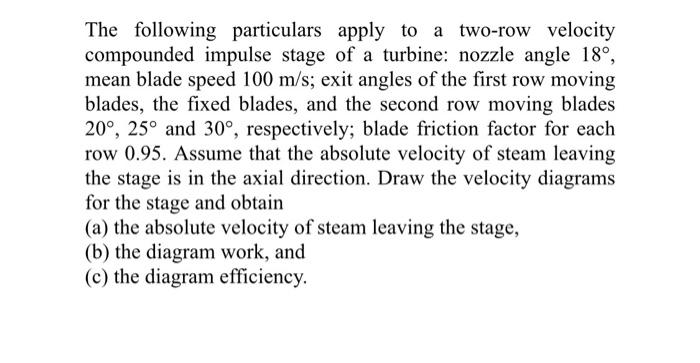

The following particulars apply to a two-row velocity compounded impulse stage of a turbine: nozzle angle 18°, mean blade speed 100 m/s; exit angles of the first row moving blades, the fixed blades, and the second row moving blades 20°, 25° and 30°, respectively; blade friction factor for each row 0.95. Assume that the absolute velocity of steam leaving the stage is in the axial direction. Draw the velocity diagrams for the stage and obtain (a) the absolute velocity of steam leaving the stage, (b) the diagram work, and (c) the diagram efficiency.
