- The Transfer Functions Of The Control System Shown In Figure Q1a Are As Follows K Gc S S 3 2 S 5 Gp S S 1 (94.41 KiB) Viewed 8 times
The transfer functions of the control system shown in Figure Q1a are as follows: K Gc(s) = (s + 3)2 (s + 5) Gp(s) = (s +
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The transfer functions of the control system shown in Figure Q1a are as follows: K Gc(s) = (s + 3)2 (s + 5) Gp(s) = (s +

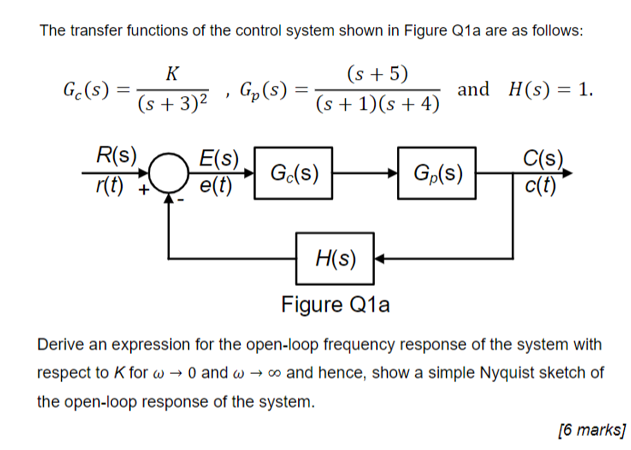

The transfer functions of the control system shown in Figure Q1a are as follows: K Gc(s) = (s + 3)2 (s + 5) Gp(s) = (s + 1)(s + 4) and H(S) = 1. R(S) r(t) + E(S) e(t) Gc(s) Gp(s) C(s). c(t) H+ H(s) Figure Q1a Derive an expression for the open-loop frequency response of the system with respect to K for w → 0 and wand hence, show a simple Nyquist sketch of the open-loop response of the system. [6 marks]
