A dc-dc flyback converter has a turn ratio N2/N1 = 2. The dc supply voltage Va is at 10V. The switching frequency of the

Post by answerhappygod »

A Dc Dc Flyback Converter Has A Turn Ratio N2 N1 2 The Dc Supply Voltage Va Is At 10v The Switching Frequency Of The 1
A Dc Dc Flyback Converter Has A Turn Ratio N2 N1 2 The Dc Supply Voltage Va Is At 10v The Switching Frequency Of The 1 (71.98 KiB) Viewed 10 times

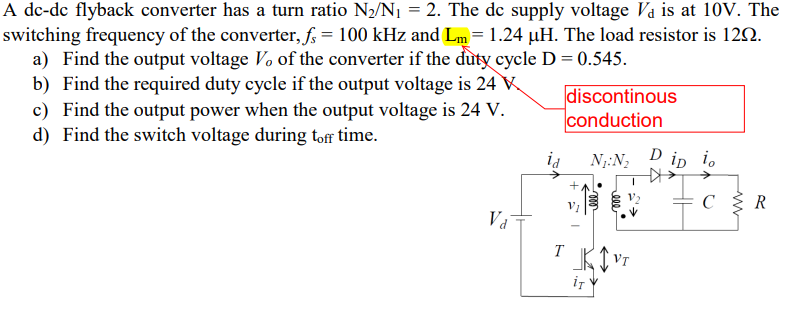

A dc-dc flyback converter has a turn ratio N2/N1 = 2. The dc supply voltage Va is at 10V. The switching frequency of the converter, fs = 100 kHz and Lm = 1.24 uH. The load resistor is 1292. a) Find the output voltage V. of the converter if the duty cycle D=0.545. b) Find the required duty cycle if the output voltage is 24 K discontinous c) Find the output power when the output voltage is 24 V. conduction d) Find the switch voltage during toff time. id N,:N, Dip i 4 + C & R Vi T JK I VI ITY
