In the circuit shown, the input sinusoidal signal has a positive peak of +12 y, zener diode A has Vz=3.3 V and zener dio

Post by answerhappygod »

In The Circuit Shown The Input Sinusoidal Signal Has A Positive Peak Of 12 Y Zener Diode A Has Vz 3 3 V And Zener Dio 1
In The Circuit Shown The Input Sinusoidal Signal Has A Positive Peak Of 12 Y Zener Diode A Has Vz 3 3 V And Zener Dio 1 (28.45 KiB) Viewed 15 times
In The Circuit Shown The Input Sinusoidal Signal Has A Positive Peak Of 12 Y Zener Diode A Has Vz 3 3 V And Zener Dio 2
In The Circuit Shown The Input Sinusoidal Signal Has A Positive Peak Of 12 Y Zener Diode A Has Vz 3 3 V And Zener Dio 2 (28.45 KiB) Viewed 15 times
extra: explain if the question wanted the positive peak voltage of Vout ?

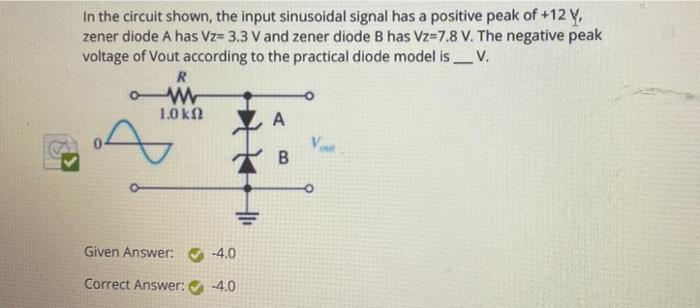

In the circuit shown, the input sinusoidal signal has a positive peak of +12 y, zener diode A has Vz=3.3 V and zener diode B has Vz=7.8 V. The negative peak voltage of Vout according to the practical diode model is _ V. R 0W 1.ΟΚΩ A V B Given Answer: -4.0 Correct Answer: -4.0
