Problem 1 (10 points) An InP Gunn diode is 10 um long and is operated in the transit-time mode. For InP, the relative pe

Post by answerhappygod »

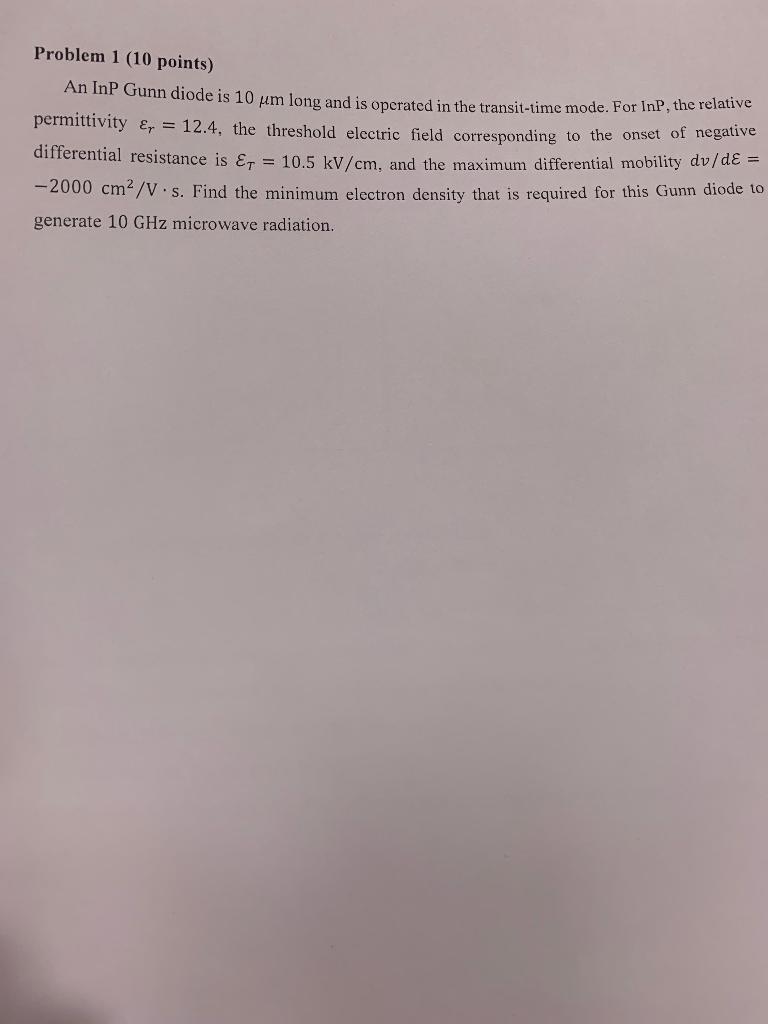

Problem 1 10 Points An Inp Gunn Diode Is 10 Um Long And Is Operated In The Transit Time Mode For Inp The Relative Pe 1
Problem 1 10 Points An Inp Gunn Diode Is 10 Um Long And Is Operated In The Transit Time Mode For Inp The Relative Pe 1 (39.08 KiB) Viewed 14 times
Please show all work
Problem 1 (10 points) An InP Gunn diode is 10 um long and is operated in the transit-time mode. For InP, the relative permittivity Er = 12.4, the threshold electric field corresponding to the onset of negative differential resistance is Er = 10.5 kV/cm, and the maximum differential mobility dv/dε = -2000 cm?/V.s. Find the minimum electron density that is required for this Gunn diode to generate 10 GHz microwave radiation.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
