Question 8 3 Pts Consider The Following Unity Feedback System R S C S K 10 S 0 001s 1 Select The Correct Value Of K 1 (27.88 KiB) Viewed 6 times
Question 8 3 Pts Consider The Following Unity Feedback System R S C S K 10 S 0 001s 1 Select The Correct Value Of K 2 (33.9 KiB) Viewed 6 times

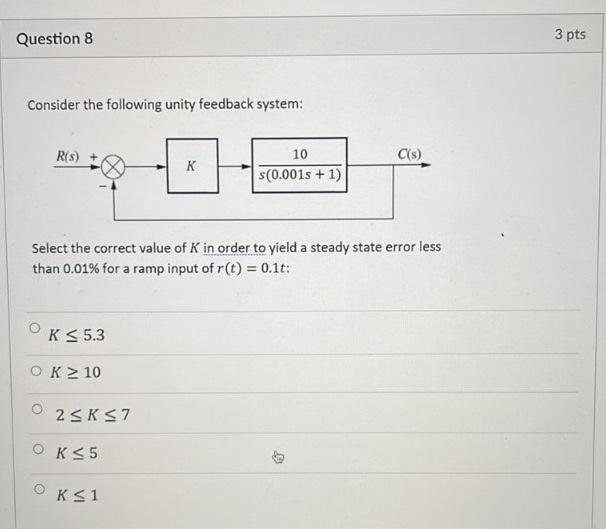

Question 8 3 pts Consider the following unity feedback system: R(S) C(s) K 10 s(0.001s +1) Select the correct value of K in order to yield a steady state error less than 0.01% for a ramp input of r(t) = 0.1t: K < 5.3 OK 10 O 2 <Ks7 OK 35 OK 31

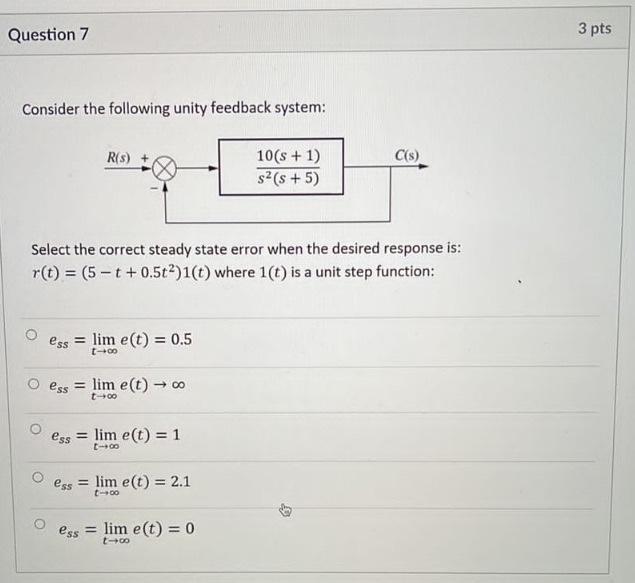

Question 7 3 pts Consider the following unity feedback system: R(s) C(s) 10(s + 1) s2 (s + 5) Select the correct steady state error when the desired response is: r(t) = (5 - t +0.5t2)1(t) where 1(t) is a unit step function: ess = lim e(t) = 0.5 1-00 ess = lim e(t)-00 t00 o ess = lim e(t) = 1 C-00 ess lim e(t) = 2.1 t-00 ess = lim e(t) = 0
