A 1.25-in-diameter solid steel shaft supports loads PA = 220 lb and PD = 330 lb. Assume L1 = 2.6 in., L2 = 5.4 in., and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A 1.25-in-diameter solid steel shaft supports loads PA = 220 lb and PD = 330 lb. Assume L1 = 2.6 in., L2 = 5.4 in., and

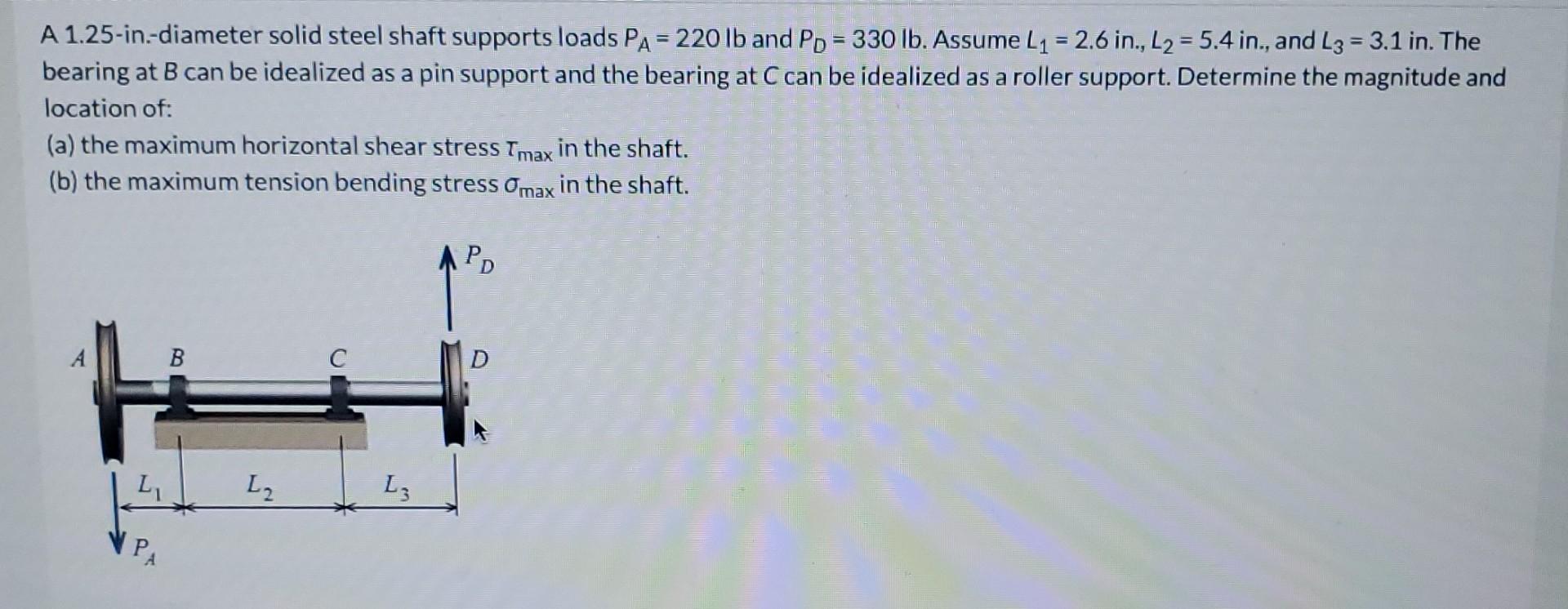

A 1.25-in-diameter solid steel shaft supports loads PA = 220 lb and PD = 330 lb. Assume L1 = 2.6 in., L2 = 5.4 in., and L3 = 3.1 in. The bearing at B can be idealized as a pin support and the bearing at C can be idealized as a roller support. Determine the magnitude and location of: (a) the maximum horizontal shear stress Tmax in the shaft. (b) the maximum tension bending stress Omax in the shaft. APD B C L L, L3 PA
