QUESTIONS 10 points Save Answer A horizontal beam of length 2L and uniform bending stiffness El is built-in at x=0. It i

[answerhappygod]

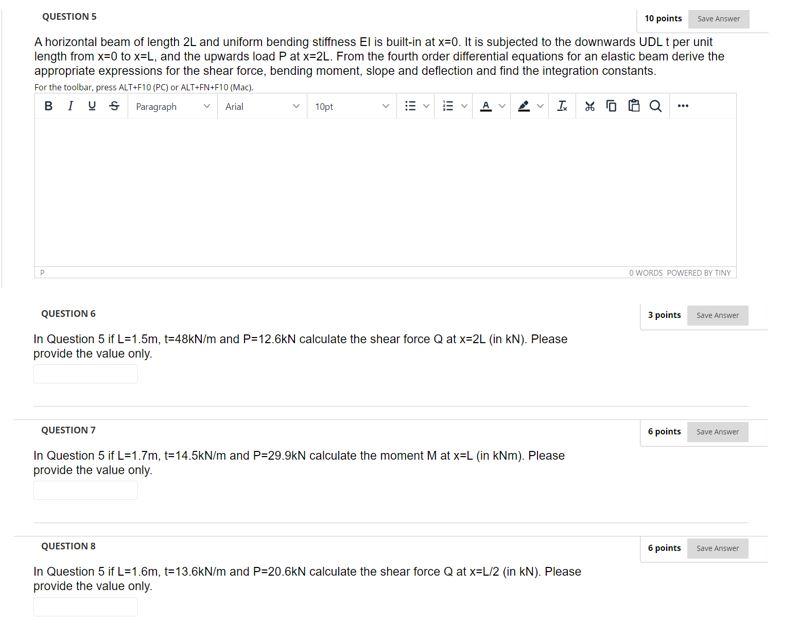

Questions 10 Points Save Answer A Horizontal Beam Of Length 2l And Uniform Bending Stiffness El Is Built In At X 0 It I 1 (50.06 KiB) Viewed 49 times

QUESTIONS 10 points Save Answer A horizontal beam of length 2L and uniform bending stiffness El is built-in at x=0. It is subjected to the downwards UDLt per unit length from x=0 to x=L, and the upwards load Pat x=2L. From the fourth order differential equations for an elastic beam derive the appropriate expressions for the shear force, bending moment, slope and deflection and find the integration constants. For the toolbar, press ALT+F10 (PC) or ALT+FN+F10(Mac), BIV & Paragraph 10pt A2 I OQ Arial . O WORDS POWERED BY TINY QUESTION 6 3 points Save Answer In Question 5 if L=1.5m, t=48kN/m and P=12.6kN calculate the shear force Q at x=2L (in kN). Please provide the value only QUESTION 7 6 points Save Answer In Question 5 if L=1.7m, t=14.5kN/m and P=29.9kN calculate the moment M at x=L(in kNm). Please provide the value only QUESTION 8 6 points Save Answer In Question 5 if L=1.6m, t=13.6kN/m and P=20.6kN calculate the shear force Q at x=L/2 (in kN). Please provide the value only.
