Consider The Mechanical System Shown To The Right Assume That M 1kg B 3 N S M And K 50 N M Note The Displac 1 (355.3 KiB) Viewed 48 times

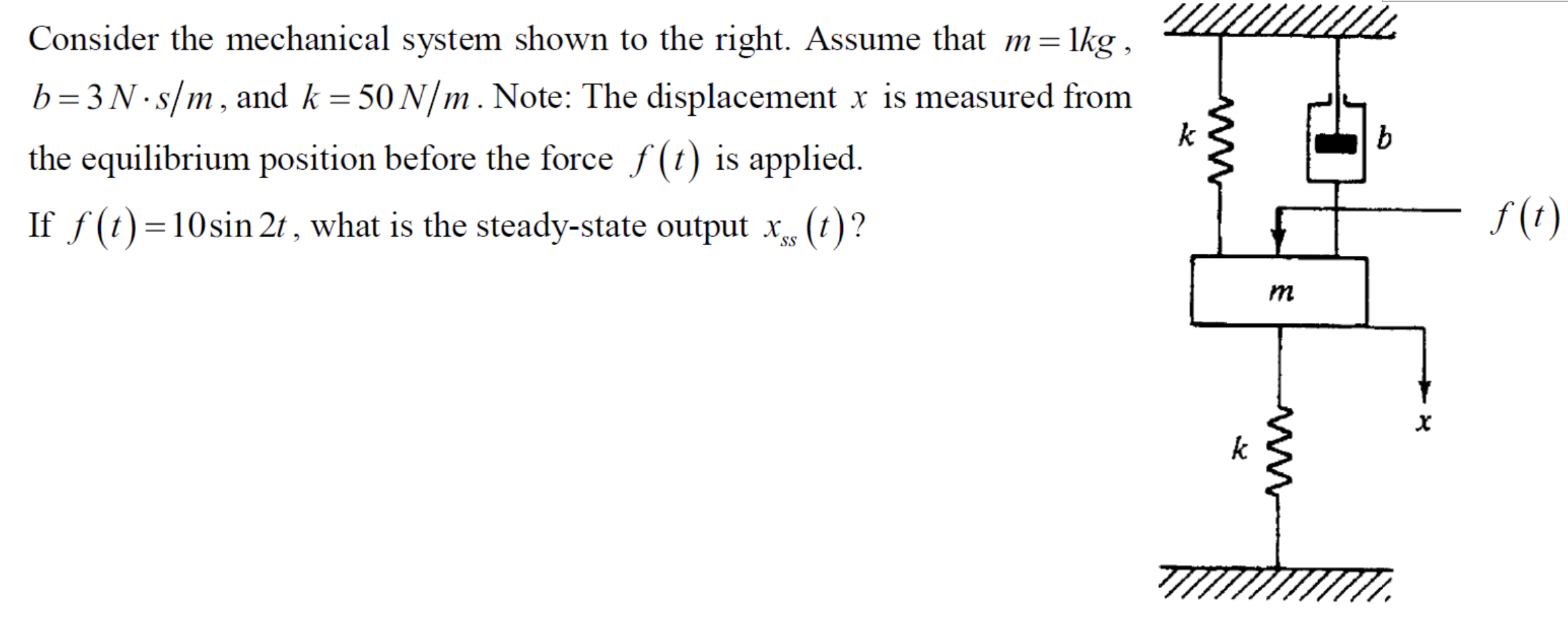

= = Consider the mechanical system shown to the right. Assume that m= 1kg , b=3 N:s/m, and k = 50 N/m. Note: The displacement x is measured from the equilibrium position before the force f(t) is applied. If f(t)=10sin 2t, what is the steady-state output xs (t)? k b w f(t) = SS m X k WW
0. xs (t)=10sin ( 2t) SS 0. x (O)=0.01sin (21 +0.06 SS O. x (O=0.1 sin(2t - 1) SS O. x (0) = 0.1sin ( 21 -0.06) SS
