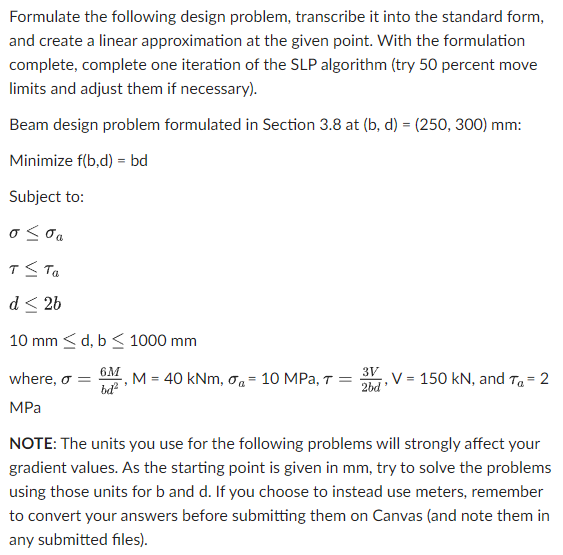

Formulate the following design problem, transcribe it into the standard form, and create a linear approximation at the given point. With the formulation complete, complete one iteration of the SLP algorithm (try 50 percent move limits and adjust them if necessary). Beam design problem formulated in Section 3.8 at (b, d) = (250, 300) mm: Minimize f(b,d) - bd Subject to: osoa T<ta d<2b 10 mm <d, b<1000 mm 6м bd M = 40 kNm, 0 n = 10 MPa, T = where, o MPа 3V 2bd V = 150 kN, and T2 = 2 NOTE: The units you use for the following problems will strongly affect your gradient values. As the starting point is given in mm, try to solve the problems using those units for b and d. If you choose to instead use meters, remember to convert your answers before submitting them on Canvas (and note them in any submitted files).

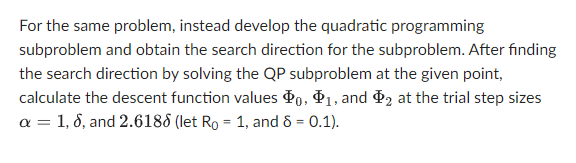

For the same problem, instead develop the quadratic programming subproblem and obtain the search direction for the subproblem. After finding the search direction by solving the QP subproblem at the given point, calculate the descent function values $0,01, and 02 at the trial step sizes a = 1, 8, and 2.6188 (let Ro = 1, and 8 = 0.1). Q =

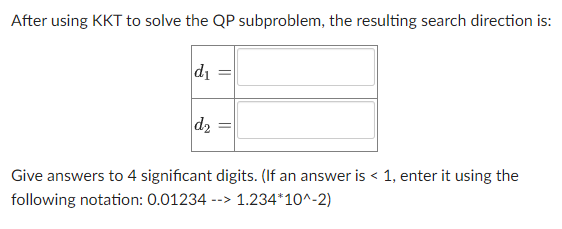

After using KKT to solve the QP subproblem, the resulting search direction is: di = d2 Give answers to 4 significant digits. (If an answer is < 1, enter it using the following notation: 0.01234 - --> 1.234*10^-2)
