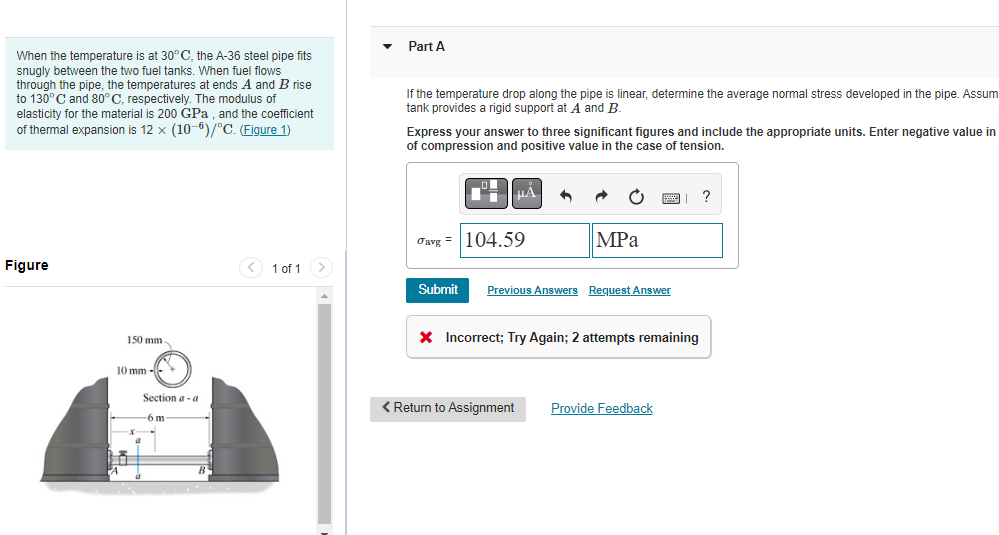

Part A When the temperature is at 30°C, the A-36 steel pipe fits snugly between the two fuel tanks. When fuel flows through the pipe, the temperatures at ends A and B rise to 130°C and 80°C, respectively. The modulus of elasticity for the material is 200 GPa , and the coefficient of thermal expansion is 12 x (10-6)/"C. (Figure 1) If the temperature drop along the pipe is linear, determine the average normal stress developed in the pipe. Assum tank provides a rigid support at A and B. Express your answer to three significant figures and include the appropriate units. Enter negative value in of compression and positive value in the case of tension. TINA ? Daug = 104.59 MPa Figure < 1 of 1 Submit Previous Answers Request Answer 150 mm X Incorrect; Try Again; 2 attempts remaining 10 mm Section - a < Return to Assignment Provide Feedback -6 m
