Problem 3: The gate in the figure is jointed at O, the width of the gate is b = 2 m. There is water on the left and oil

Post by answerhappygod »

Problem 3 The Gate In The Figure Is Jointed At O The Width Of The Gate Is B 2 M There Is Water On The Left And Oil 1
Problem 3 The Gate In The Figure Is Jointed At O The Width Of The Gate Is B 2 M There Is Water On The Left And Oil 1 (57.51 KiB) Viewed 25 times
dynamics

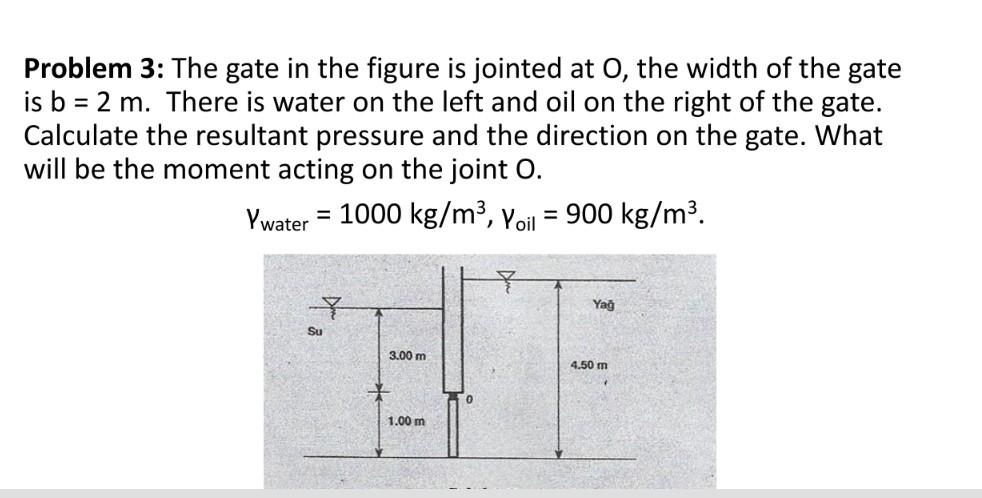

Problem 3: The gate in the figure is jointed at O, the width of the gate is b = 2 m. There is water on the left and oil on the right of the gate. Calculate the resultant pressure and the direction on the gate. What will be the moment acting on the joint O. Ywater = 1000 kg/m3, Yoil = 900 kg/m3. = Yag Su 3.00 m 4.50 m 0 1.00 m
