B P, ho с D А С C P2 a b Distances are in feet and loads are in b: a b с P1 P2 10 8 6 900 1200 Question 1 Prepare the re

Post by answerhappygod »

1
1 (51.26 KiB) Viewed 19 times

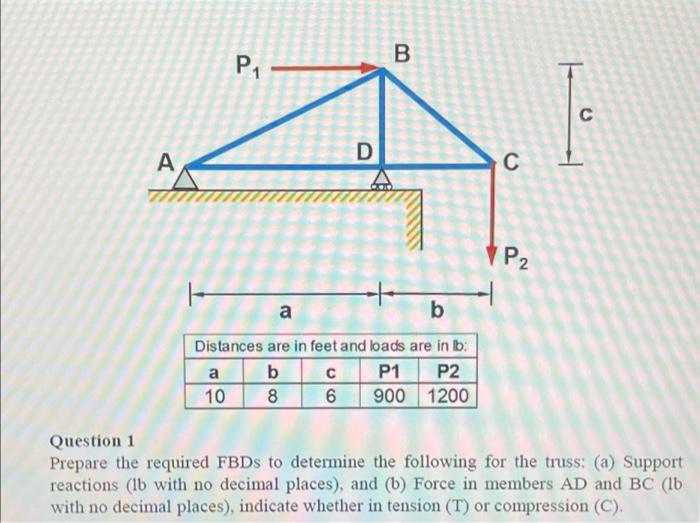

B P, ho с D А С C P2 a b Distances are in feet and loads are in b: a b с P1 P2 10 8 6 900 1200 Question 1 Prepare the required FBDs to determine the following for the truss: (a) Support reactions (lb with no decimal places), and (b) Force in members AD and BC (16 with no decimal places), indicate whether in tension (T) or compression (C).
