500 lb/ft 8000 lb-ft 8000 lb ft 10 ft Fig. P4.56

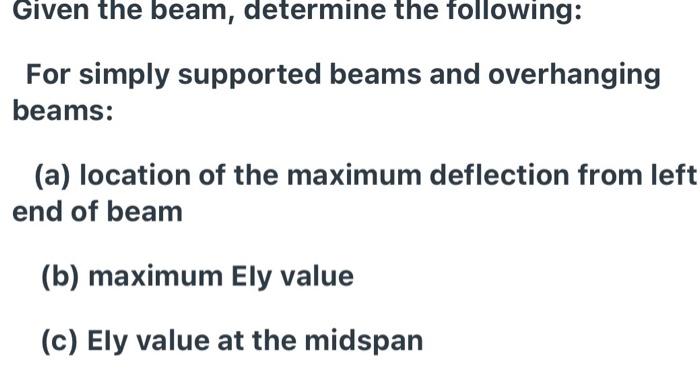

Given the beam, determine the following: For simply supported beams and overhanging beams: (a) location of the maximum deflection from left end of beam (b) maximum Ely value (c) Ely value at the midspan
