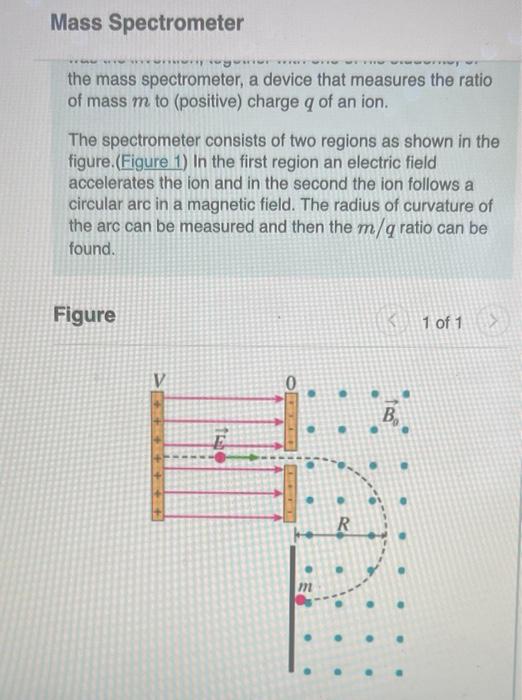

Mass Spectrometer enery youn www the mass spectrometer, a device that measures the ratio of mass m to (positive) charge q of an ion. The spectrometer consists of two regions as shown in the figure.(Figure 1) In the first region an electric field accelerates the ion and in the second the ion follows a circular arc in a magnetic field. The radius of curvature of the arc can be measured and then the m/q ratio can be found. Figure K 1 of 1 . |::* B R V +++4 m

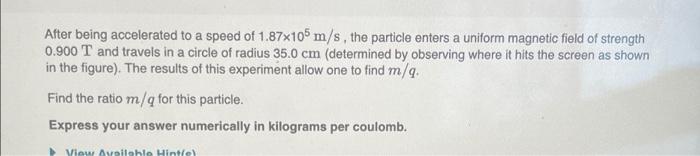

After being accelerated to a speed of 1.87x105 m/s, the particle enters a uniform magnetic field of strength 0.900 T and travels in a circle of radius 35.0 cm (determined by observing where it hits the screen as shown in the figure). The results of this experiment allow one to find m/q. Find the ratio m/q for this particle. Express your answer numerically in kilograms per coulomb. View Available Hintfel
