= = = = Fx Question 4 (10 marks): A solid shaft (length L = 3 ft, diameter D = 4 in) is fixed at left side and subjected

[answerhappygod]

Fx Question 4 10 Marks A Solid Shaft Length L 3 Ft Diameter D 4 In Is Fixed At Left Side And Subjected 1 (63.48 KiB) Viewed 10 times

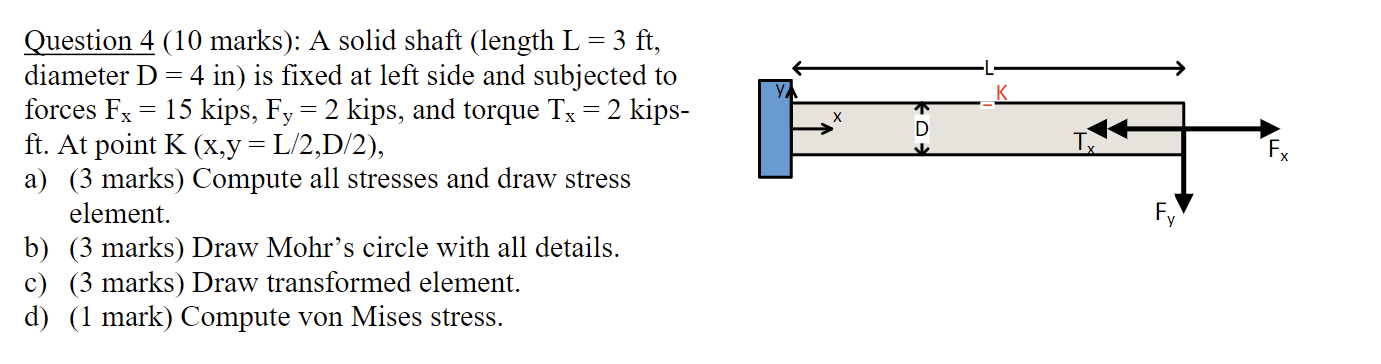

= = = = Fx Question 4 (10 marks): A solid shaft (length L = 3 ft, diameter D = 4 in) is fixed at left side and subjected to forces Fx = 15 kips, Fy = 2 kips, and torque Tx = 2 kips- ft. At point K (x,y=L/2,D/2), K a) (3 marks) Compute all stresses and draw stress element. b) (3 marks) Draw Mohr's circle with all details. c) (3 marks) Draw transformed element. d) (1 mark) Compute von Mises stress.
