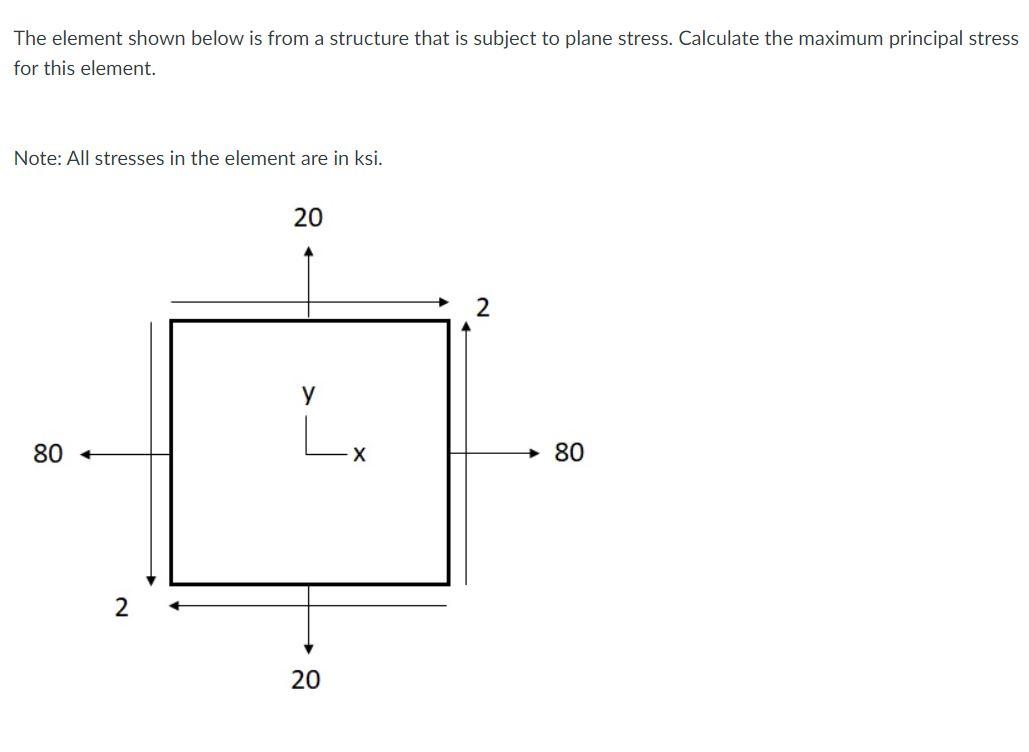

The element shown below is from a structure that is subject to plane stress. Calculate the maximum principal stress for this element. Note: All stresses in the element are in ksi. 20 2 у 80 + х 80 N 20
The element shown below is from a structure that is subject to plane stress. Calculate the absolute maximum shear stress for this element. Note: All stresses in the element are in ksi. 20 2 у L 80 Х 80 2 20
