In a typical gas turbine plant, the air is compressed in a single stage compressor from atmospheric conditions to 8 bar. The same air is then heated to a temperature of
527°C and then expanded in the turbine. The air is then reheated to a temperature of
527°C and then expanded in the second turbin

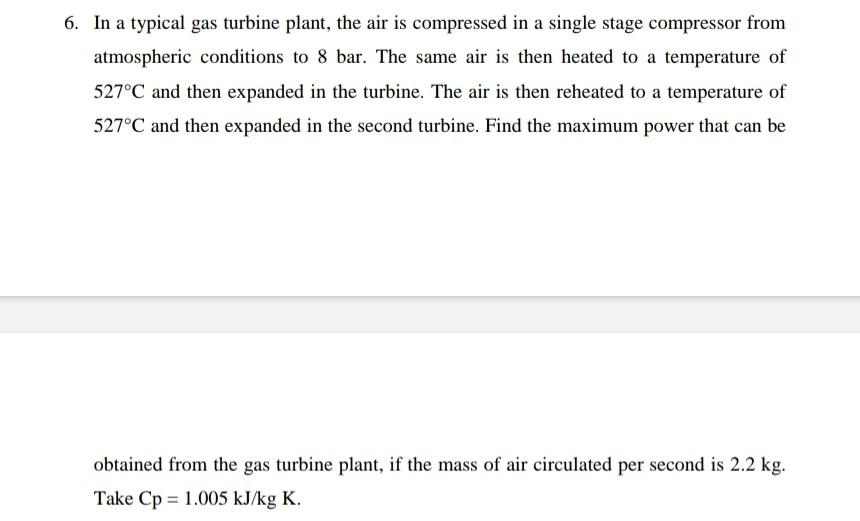

In A Typical Gas Turbine Plant The Air Is Compressed In A Single Stage Compressor From Atmospheric Conditions To 8 Bar 1 (36.41 KiB) Viewed 32 times
e. Find the maximum power that can be obtained from the gas turbine plant, if the mass of air circulated per second is 2.2 kg.
Take Cp = 1.005 kJ/kg K
6. In a typical gas turbine plant, the air is compressed in a single stage compressor from atmospheric conditions to 8 bar. The same air is then heated to a temperature of 527°C and then expanded in the turbine. The air is then reheated to a temperature of 527°C and then expanded in the second turbine. Find the maximum power that can be obtained from the gas turbine plant, if the mass of air circulated per second is 2.2 kg. Take Cp = 1.005 kJ/kg K.
