(12) For the spring system subjected to the force loads shown in the figure below, using FEA to determine the deformatio

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(12) For the spring system subjected to the force loads shown in the figure below, using FEA to determine the deformatio

Post by answerhappygod »

12 For The Spring System Subjected To The Force Loads Shown In The Figure Below Using Fea To Determine The Deformatio 1
12 For The Spring System Subjected To The Force Loads Shown In The Figure Below Using Fea To Determine The Deformatio 1 (34.93 KiB) Viewed 35 times

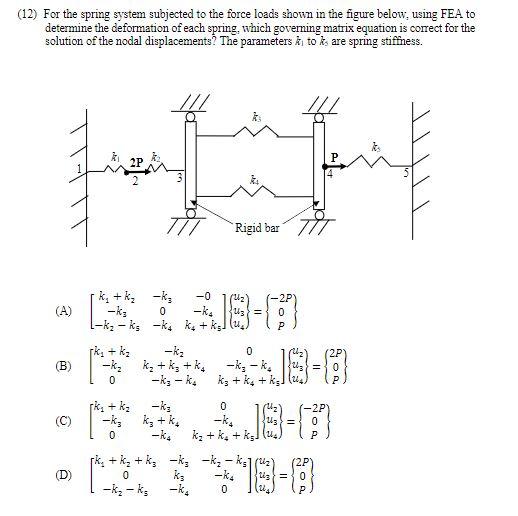

(12) For the spring system subjected to the force loads shown in the figure below, using FEA to determine the deformation of each spring, which governing matrix equation is correct for the solution of the nodal displacements The parameters kitoks are spring stiffness. -- Rigid bar (A) ( P (B) - kg + K2 -k, -0 -2P -kz 0 -k4 U3 = 0 L-kz-ks-k4 kt + ks] ka+k2 -k: 0 42 (2P -k, kg + kg + k-kg - k. us= -K; -k k; + k + kg(u) ska+k2 -k 2P -k, kz+ku -k 0 k; + k + ks] (us sk. + k, + kg - kg -ky - ks] (uz) 0 -k4 -ka-ks-ke 0 (C) ) P 1.19-1 *** *18-03 (D) ks
