On a 400 mm long and 180 mm wide stainless steel block, a peripheral milling process is performed
peripheral milling is performed at a feed rate of 0,3 mm/tooth and a cutting depth of 5 mm.
depth of cut of 5 mm. The milling cutter used has a diameter D =60 mm, 40 teeth and is smaller than the block to be milled. Calculate the power required for the operation, the torque and the cutting force, if the milling cutter rotates at N - 200 rpm. Data: Specific energy of stainless steel W = 3
GJ/m3
Determine:
a. Calculate the power required for the operation.
b. The total time of the cutting operation
c. The torque
d. The cutting force.

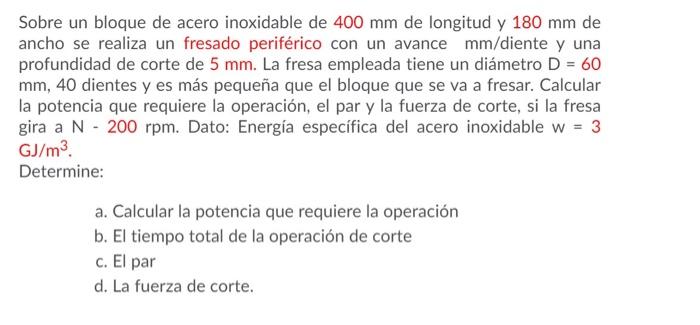

On A 400 Mm Long And 180 Mm Wide Stainless Steel Block A Peripheral Milling Process Is Performed Peripheral Milling Is 1 (33.19 KiB) Viewed 44 times
Sobre un bloque de acero inoxidable de 400 mm de longitud y 180 mm de ancho se realiza un fresado periférico con un avance mm/diente y una profundidad de corte de 5 mm. La fresa empleada tiene un diámetro D = 60 mm, 40 dientes y es más pequeña que el bloque que se va a fresar. Calcular la potencia que requiere la operación, el par y la fuerza de corte, si la fresa gira a N - 200 rpm. Dato: Energía específica del acero inoxidable w = 3 GJ/m3 Determine: a. Calcular la potencia que requiere la operación b. El tiempo total de la operación de corte c. El par d. La fuerza de corte.
