= = = A torque T = 100 N·m is applied to the shaft EFG. Gear F transmits torque to shaft ABCD through gear C, which driv

[answerhappygod]

A Torque T 100 N M Is Applied To The Shaft Efg Gear F Transmits Torque To Shaft Abcd Through Gear C Which Driv 1 (346.84 KiB) Viewed 37 times

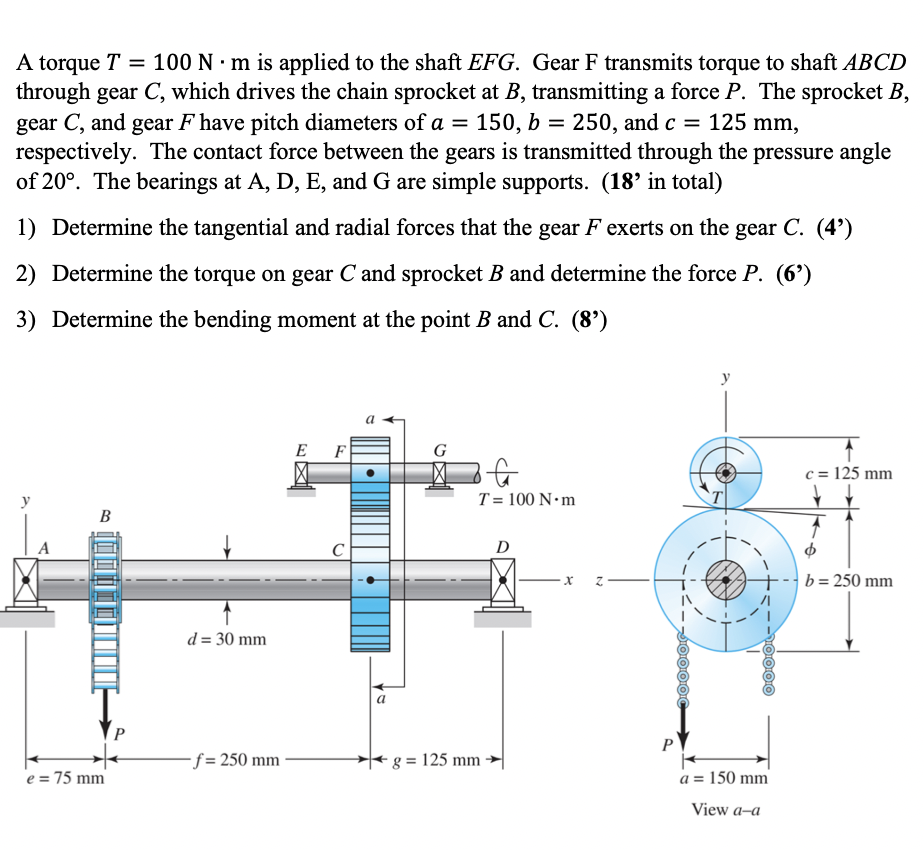

= = = A torque T = 100 N·m is applied to the shaft EFG. Gear F transmits torque to shaft ABCD through gear C, which drives the chain sprocket at B, transmitting a force P. The sprocket B, gear C, and gear F have pitch diameters of a = 150, b = 250, and c = 125 mm, respectively. The contact force between the gears is transmitted through the pressure angle of 20°. The bearings at A, D, E, and G are simple supports. (18’ in total) 1) Determine the tangential and radial forces that the gear F exerts on the gear C. (4') ) 2) Determine the torque on gear C and sprocket B and determine the force P. (6') 3) Determine the bending moment at the point B and C. (8') у a E F G . c= 125 mm y T = 100 N·m B В с D b = 250 mm d = 30 mm LOLOLOLOIC OOOO- P -f = 250 mm + g = 125 mm e = 75 mm a = 150 mm View a-a
