Q5. Figure Q5 depicts a ceiling mounted robot manipulator with a conical tool fitted as part of the end-effector. The ma

Post by answerhappygod »

Q5 Figure Q5 Depicts A Ceiling Mounted Robot Manipulator With A Conical Tool Fitted As Part Of The End Effector The Ma 1
Q5 Figure Q5 Depicts A Ceiling Mounted Robot Manipulator With A Conical Tool Fitted As Part Of The End Effector The Ma 1 (91.36 KiB) Viewed 36 times

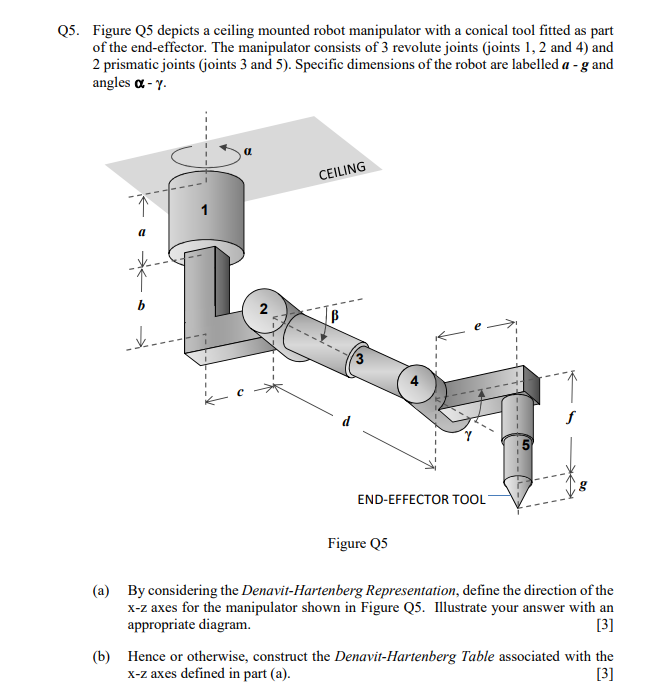

Q5. Figure Q5 depicts a ceiling mounted robot manipulator with a conical tool fitted as part of the end-effector. The manipulator consists of 3 revolute joints (joints 1, 2 and 4) and 2 prismatic joints (joints 3 and 5). Specific dimensions of the robot are labelled a -g and angles - y. CEILING b B V f END-EFFECTOR TOOL Figure Q5 (a) By considering the Denavit-Hartenberg Representation, define the direction of the X-z axes for the manipulator shown in Figure Q5. Illustrate your answer with an appropriate diagram. [3] (b) Hence or otherwise, construct the Denavit-Hartenberg Table associated with the X-z axes defined in part (a). [3]
