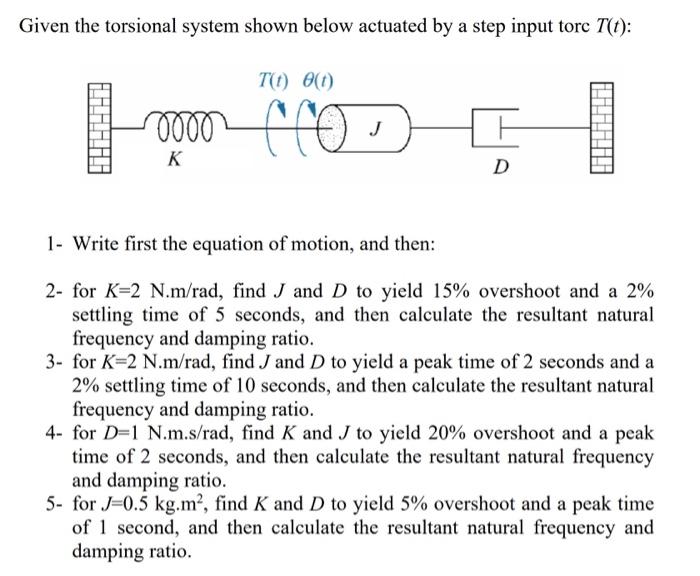

Given the torsional system shown below actuated by a step input tore T(t): T(t) e(t) LILI.1.4.1 0000 cro J HE K D 1- Write first the equation of motion, and then: 2- for K=2 N.m/rad, find J and D to yield 15% overshoot and a 2% settling time of 5 seconds, and then calculate the resultant natural frequency and damping ratio. 3- for K=2 N.m/rad, find J and D to yield a peak time of 2 seconds and a 2% settling time of 10 seconds, and then calculate the resultant natural frequency and damping ratio. 4- for D=1 N.m.s/rad, find K and I to yield 20% overshoot and a peak time of 2 seconds, and then calculate the resultant natural frequency and damping ratio. 5- for J=0.5 kg.m”, find K and D to yield 5% overshoot and a peak time of 1 second, and then calculate the resultant natural frequency and damping ratio.
