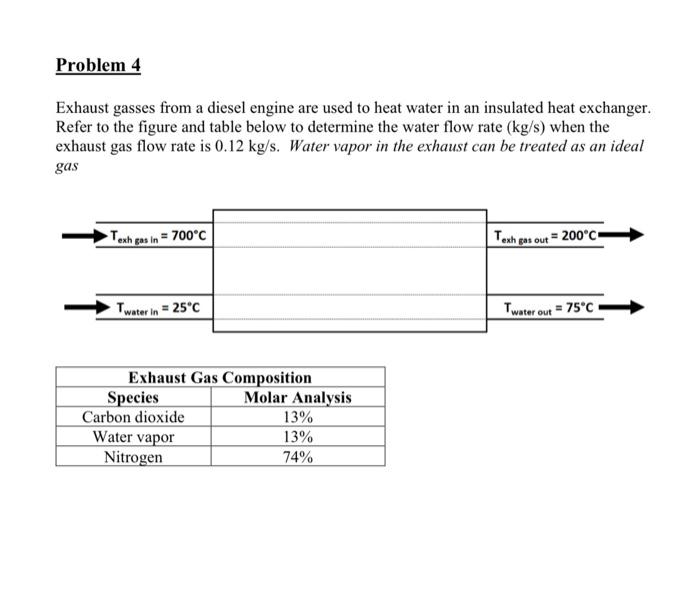

Problem 4 Exhaust gasses from a diesel engine are used to heat water in an insulated heat exchanger. Refer to the figure

[answerhappygod]

Problem 4 Exhaust Gasses From A Diesel Engine Are Used To Heat Water In An Insulated Heat Exchanger Refer To The Figure 1 (35.67 KiB) Viewed 31 times

Problem 4 Exhaust gasses from a diesel engine are used to heat water in an insulated heat exchanger. Refer to the figure and table below to determine the water flow rate (kg/s) when the exhaust gas flow rate is 0.12 kg/s. Water vapor in the exhaust can be treated as an ideal gas Texh gas in = 700°C Texh gas out = 200C Twater in = 25°C Twater our = 75°C Exhaust Gas Composition Species Molar Analysis Carbon dioxide 13% Water vapor 13% Nitrogen 74%
