8.77 The pressure at section (2) shown below is not to fall below 415kPa when the flowrate from the tank varies from 0 t

[answerhappygod]

8 77 The Pressure At Section 2 Shown Below Is Not To Fall Below 415kpa When The Flowrate From The Tank Varies From 0 T 1 (37.13 KiB) Viewed 34 times

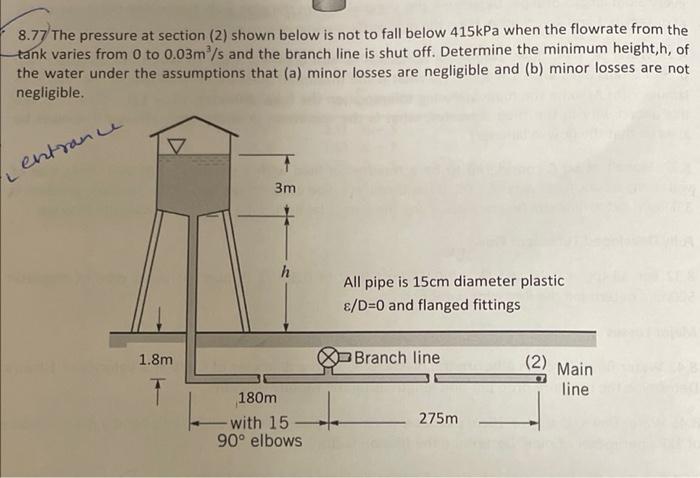

8.77 The pressure at section (2) shown below is not to fall below 415kPa when the flowrate from the tank varies from 0 to 0.03m/s and the branch line is shut off. Determine the minimum height, h, of the water under the assumptions that (a) minor losses are negligible and (b) minor losses are not negligible. V entrance 3m h All pipe is 15cm diameter plastic €/D=0 and flanged fittings 1.8m Bu Branch line (2) T Main line 180m with 15 90° elbows 275m
