Problem 2 (25) D The triangular water trough and the force along the end plate E is illustrated in the move figures. The

[answerhappygod]

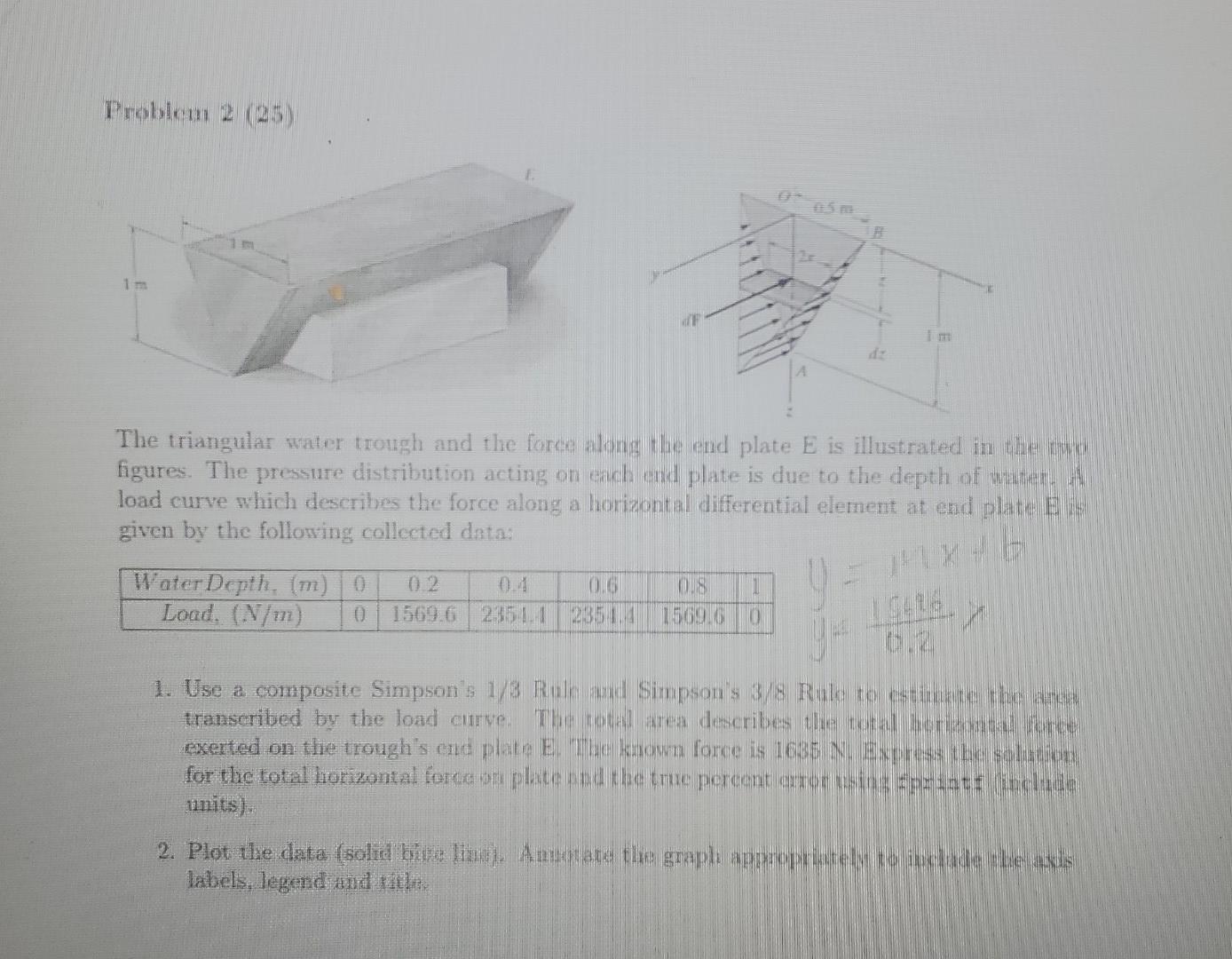

Problem 2 25 D The Triangular Water Trough And The Force Along The End Plate E Is Illustrated In The Move Figures The 1 (174.04 KiB) Viewed 32 times

Problem 2 (25) D The triangular water trough and the force along the end plate E is illustrated in the move figures. The pressure distribution acting on each and plate is due to the depth of water load curve which describes the force along a horizontal differential element at end plate Bis given by the following collected data: HXH u Water Depth (m) | 0 0.2 0.0 Load. (N/m) 0 1569.6 2351 235 1569.0 10 UK 1. Use a composite Simpson's 1/3 Role aud Simpson's 3/8 Rule to estimate the need transcribed by the load curve The total area describes the total area force exerted on the trough's end plate B. The known force is 1686 N Express the solution for the total horizontal force on plate and the true percent orror using printt (include units). 2. Plot the data (solid bike like Amate the graplı appropriately to include eben aukis labels, legend and title:
