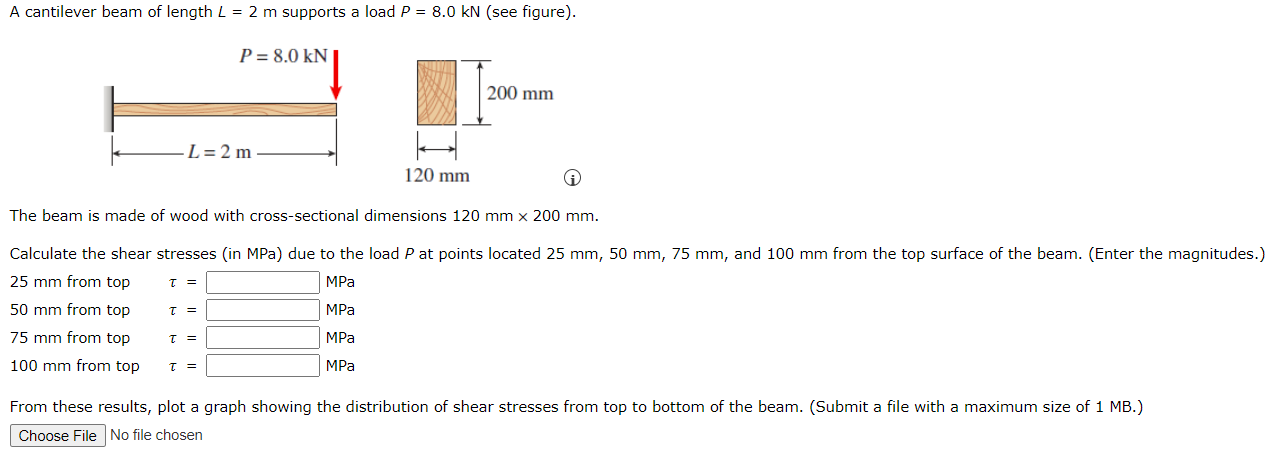

A cantilever beam of length L = 2 m supports a load P = 8.0 KN (see figure). P= 8.0 KN 200 mm L = 2 m 120 mm T = The beam is made of wood with cross-sectional dimensions 120 mm x 200 mm. Calculate the shear stresses (in MPa) due to the load P at points located 25 mm, 50 mm, 75 mm, and 100 mm from the top surface of the beam. (Enter the magnitudes.) 25 mm from top MPa 50 mm from top MPa 75 mm from top MPa 100 mm from top MPa T = T = From these results, plot a graph showing the distribution of shear stresses from top to bottom of the beam. (Submit a file with a maximum size of 1 MB.) Choose File No file chosen
