A second order feedback control system has no zeros, two poles at -0.56 + 1.63i and a gain K = 15. (a) Determine the clo

[answerhappygod]

A Second Order Feedback Control System Has No Zeros Two Poles At 0 56 1 63i And A Gain K 15 A Determine The Clo 1 (323.25 KiB) Viewed 26 times

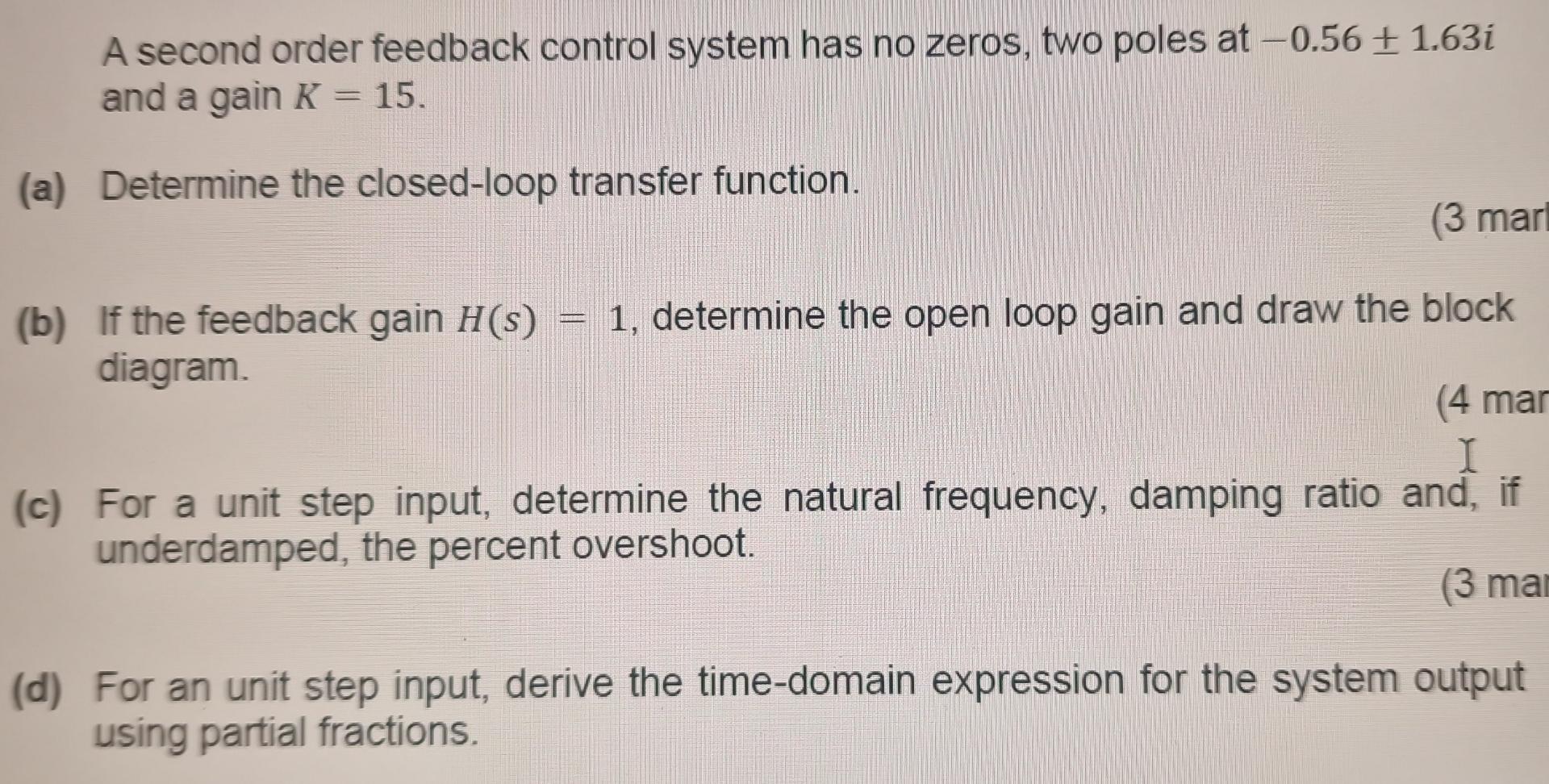

A second order feedback control system has no zeros, two poles at -0.56 + 1.63i and a gain K = 15. (a) Determine the closed-loop transfer function. (3 mar (b) If the feedback gain H(s) = 1, determine the open loop gain and draw the block diagram. (4 mar I (c) For a unit step input, determine the natural frequency, damping ratio and, if underdamped, the percent overshoot. (3 mai (d) For an unit step input, derive the time-domain expression for the system output using partial fractions,
