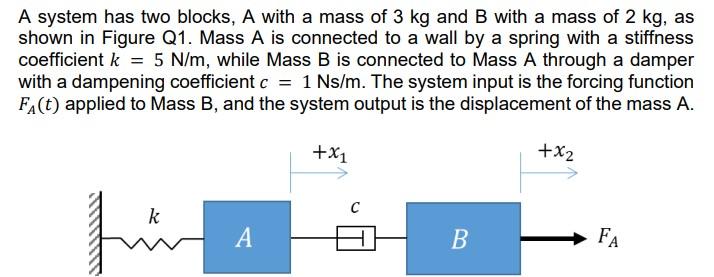

A system has two blocks, A with a mass of 3 kg and B with a mass of 2 kg, as shown in Figure Q1. Mass A is connected to a wall by a spring with a stiffness coefficient k = 5 N/m, while Mass B is connected to Mass A through a damper with a dampening coefficient c = 1 Ns/m. The system input is the forcing function Fa(t) applied to Mass B, and the system output is the displacement of the mass A. +x1 +x2 с für A B FA
Using the following state variables, derive the state space representation of the system. 21 = x1,22 = 1 23 = X2,24 = 2 =
