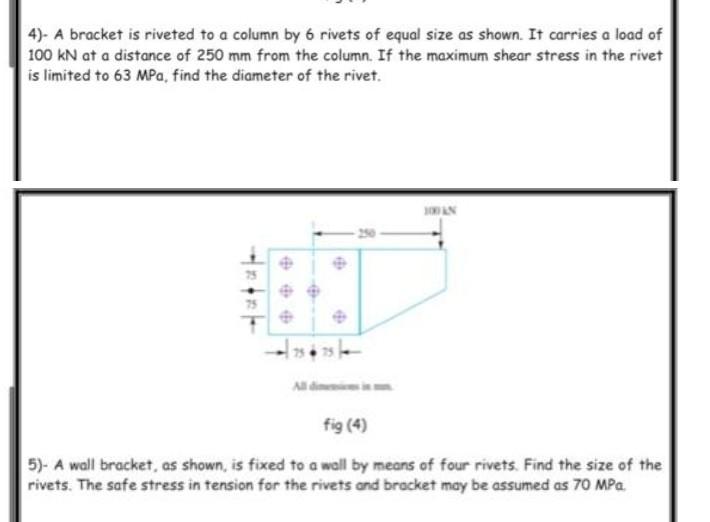

4). A bracket is riveted to a column by 6 rivets of equal size as shown. It carries a load of 100 kN at a distance of 250 mm from the column. If the maximum shear stress in the rivet is limited to 63 MPa, find the diameter of the rivet. fig (4) 5). A wall bracket, as shown, is fixed to a wall by means of four rivets. Find the size of the rivets. The safe stress in tension for the rivets and bracket may be assumed as 70 MPa.
