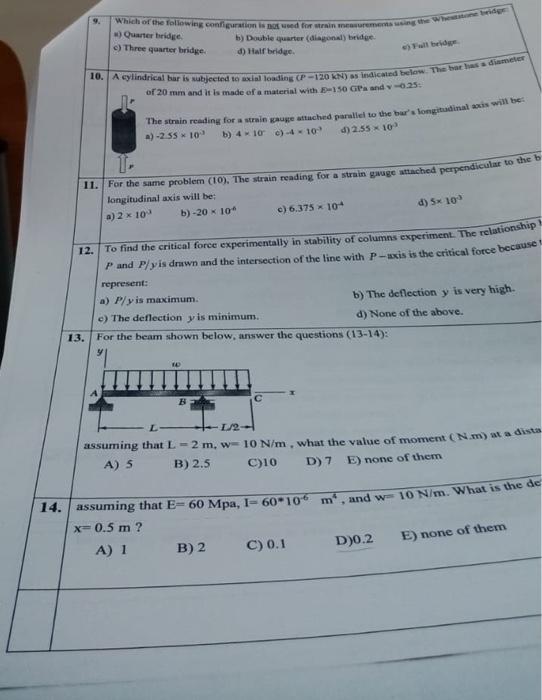

- 9 Which Of The Following Configuratowed For The Who Quarter Bridge B Double Quarter Diagonal Bridge C Three Quart 1 (44.12 KiB) Viewed 30 times
If you answer the question l will give you like
9. Which of the following configuratowed for the who ) Quarter bridge b) Double quarter (diagonal) bridge c) Three quartier bridge d) Half bridge 10. A cylindrical har is subjected to axial loading CP - 120 kN) as indicated below. The barbas diameter of 20 mm and it is made of a material with B-150 GP and -0.25 The strain reading for a strain gauge attached parallel to the bure longitudinal axis will be a)-255 10 b) 4 10 c)-4-10 4) 2.55 x 10 11. For the same problem (10). The strain reading for a strain gauge attached perpendicular to the longitudinal axis will be a) 2 x 10 b) -20 x 10 c) 6,375 x 10+ d) 5 10 12. To find the critical force experimentally in stability of columns experiment. The relationship P and Pyis drawn and the intersection of the line with P-asis is the critical force because represent: a) Pyis maximum. b) The deflection y is very high. c) The deflection yis minimum. d) None of the above. 13. For the beam shown below, answer the questions (13-14): y с BE L assuming that L - 2 m.w=10 N/m, what the value of moment (Nm) at a dista A S B) 2.5 C)10 D) 7 E) none of them 14. assuming that E= 60 Mpa, 1= 60-100 m, and w=10 N/m. What is the de x=0.5 m ? A) 1 B) 2 C) 0.1 D)0.2 E) none of them
