Q.3 A second order feedback control system has no zeros, two poles at -0.56 + 1.63i and a gain K = 15. (a) Determine the

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q.3 A second order feedback control system has no zeros, two poles at -0.56 + 1.63i and a gain K = 15. (a) Determine the

Post by answerhappygod »

Q 3 A Second Order Feedback Control System Has No Zeros Two Poles At 0 56 1 63i And A Gain K 15 A Determine The 1

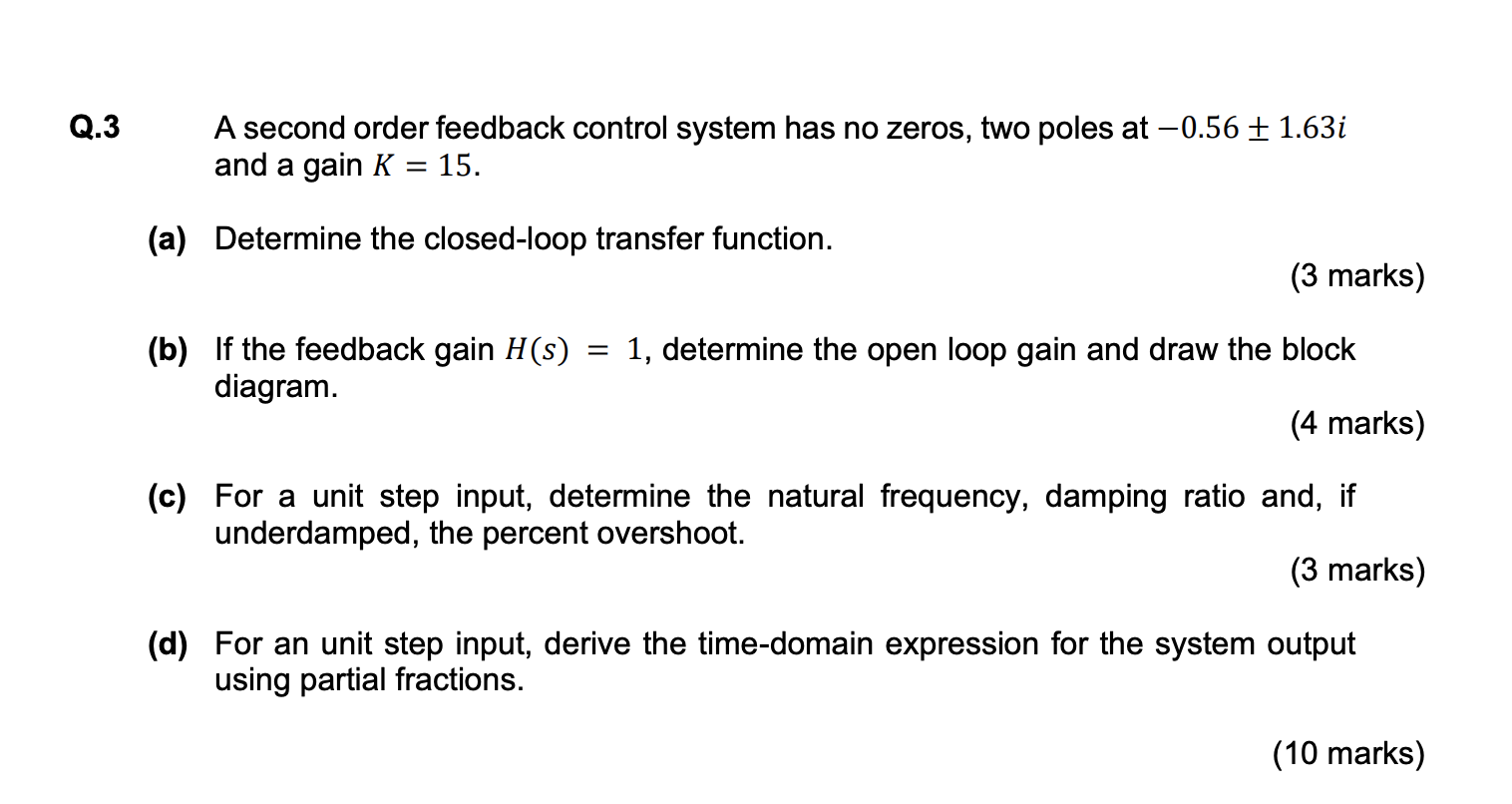

Q 3 A Second Order Feedback Control System Has No Zeros Two Poles At 0 56 1 63i And A Gain K 15 A Determine The 1 (96.08 KiB) Viewed 36 times
Q.3 A second order feedback control system has no zeros, two poles at -0.56 + 1.63i and a gain K = 15. (a) Determine the closed-loop transfer function. (3 marks) (b) If the feedback gain H(S) diagram. = 1, determine the open loop gain and draw the block (4 marks) (c) For a unit step input, determine the natural frequency, damping ratio and, if underdamped, the percent overshoot. (3 marks) (d) For an unit step input, derive the time-domain expression for the system output using partial fractions. (10 marks)
