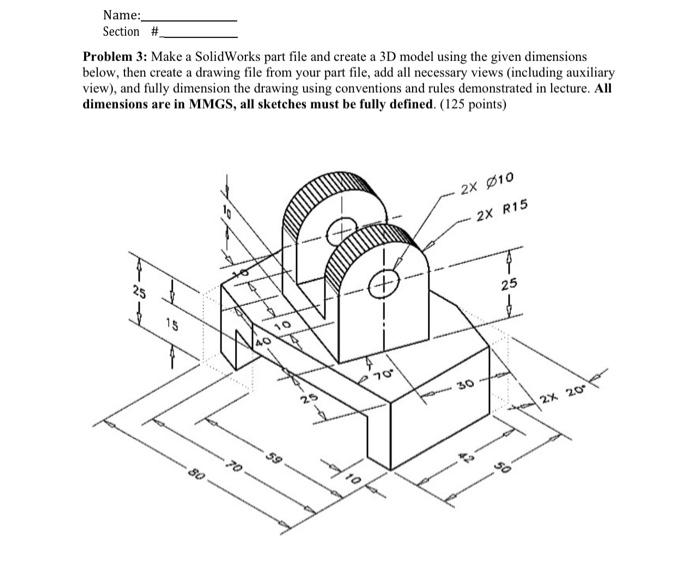

Name: Section # Problem 3: Make a SolidWorks part file and create a 3D model using the given dimensions below, then create a drawing file from your part file, add all necessary views (including auxiliary view), and fully dimension the drawing using conventions and rules demonstrated in lecture. All dimensions are in MMGS, all sketches must be fully defined. (125 points) 2x 10 2x R15 25 25 13 70 30 2% 2.00 La 70 59 50
