QUESTION 3 1131 3.1 Name three effects of friction in nozzles. [31 3.2 Dry saturated steam at a pressure of 2.8bar is ex

Post by answerhappygod »

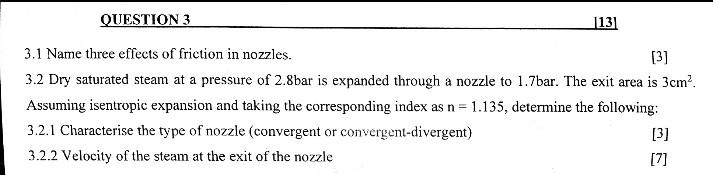

Question 3 1131 3 1 Name Three Effects Of Friction In Nozzles 31 3 2 Dry Saturated Steam At A Pressure Of 2 8bar Is Ex 1
Question 3 1131 3 1 Name Three Effects Of Friction In Nozzles 31 3 2 Dry Saturated Steam At A Pressure Of 2 8bar Is Ex 1 (24.58 KiB) Viewed 26 times
QUESTION 3 1131 3.1 Name three effects of friction in nozzles. [31 3.2 Dry saturated steam at a pressure of 2.8bar is expanded through a nozzle to 1.7bar. The exit area is 3cm? Assuming isentropic expansion and taking the corresponding index as n = 1.135, determine the following: 3.2.1 Characterise the type of nozzle (convergent or convergent-divergent) [3] 3.2.2 Velocity of the steam at the exit of the nozzle [7]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
