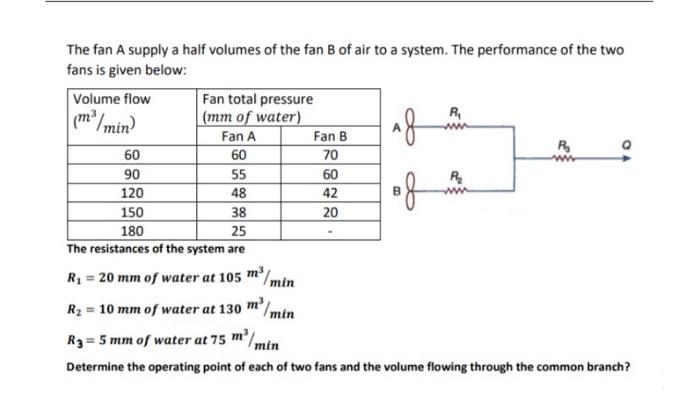

(m3/min The fan A supply a half volumes of the fan B of air to a system. The performance of the two fans is given below:

[answerhappygod]

M3 Min The Fan A Supply A Half Volumes Of The Fan B Of Air To A System The Performance Of The Two Fans Is Given Below 1 (29.65 KiB) Viewed 41 times

(m3/min The fan A supply a half volumes of the fan B of air to a system. The performance of the two fans is given below: Volume flow Fan total pressure (mm of water) R Fan A Fan B 60 R 60 70 90 55 60 R 120 48 42 150 38 20 180 25 The resistances of the system are R = 20 mm of water at 105 m R2 = 10 mm of water at 130 m/min R3 = 5 mm of water at 75 m/min Determine the operating point of each of two fans and the volume flowing through the common branch? Af of min
