A 1-meter-long, simply supported copper beam (E - 117 GPa) carries uniformly distributed load - The maximum deflection i

[answerhappygod]

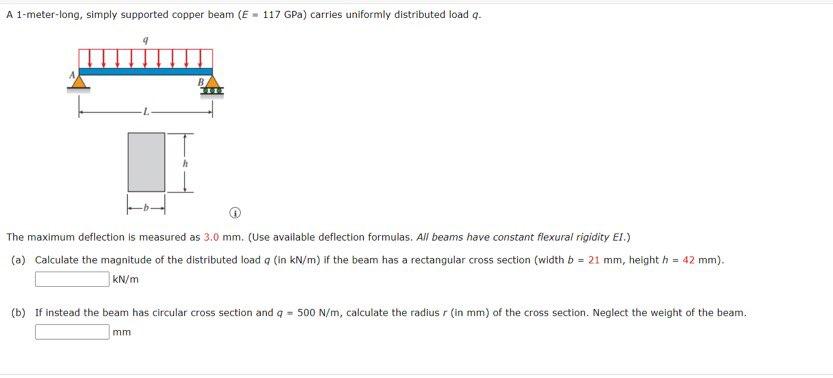

A 1 Meter Long Simply Supported Copper Beam E 117 Gpa Carries Uniformly Distributed Load The Maximum Deflection I 1 (26.62 KiB) Viewed 37 times

A 1-meter-long, simply supported copper beam (E - 117 GPa) carries uniformly distributed load - The maximum deflection is measured as 3.0 mm. (Use available deflection formulas. All beams have constant flexural rigidity EI.) (a) Calculate the magnitude of the distributed load a (in kN/m) if the beam has a rectangular cross section (width b = 21 mm, height h = 42 mm). kN/m (b) If instead the beam has circular cross section and q = 500 N/m, calculate the radius r (in mm) of the cross section. Neglect the weight of the beam. mm
