Try to solve the axial force on the 1-1, 2-2, 3-3 section of each rod in the figure, and draw the axial force diagram 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Try to solve the axial force on the 1-1, 2-2, 3-3 section of each rod in the figure, and draw the axial force diagram 1

Post by answerhappygod »

Try To Solve The Axial Force On The 1 1 2 2 3 3 Section Of Each Rod In The Figure And Draw The Axial Force Diagram 1 1
Try To Solve The Axial Force On The 1 1 2 2 3 3 Section Of Each Rod In The Figure And Draw The Axial Force Diagram 1 1 (14.88 KiB) Viewed 31 times

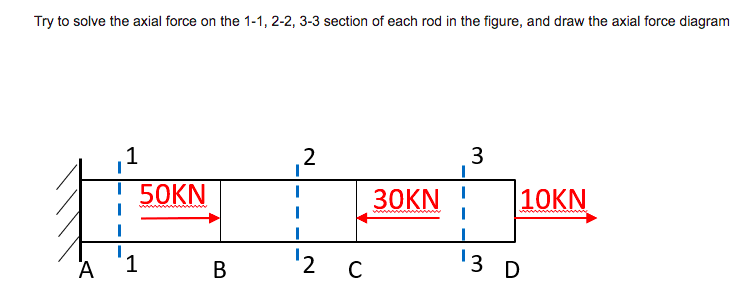

Try to solve the axial force on the 1-1, 2-2, 3-3 section of each rod in the figure, and draw the axial force diagram 1 2 N 3 50KN 30KN 10KN 가 1 A 13 D '2 B с
