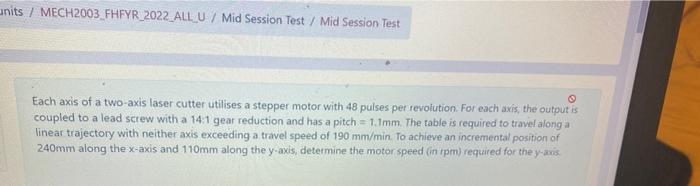

Anits Mech2003 Fhfyr 2022 All U Mid Session Test Mid Session Test Each Axis Of A Two Axis Laser Cutter Utilises A 1 (18.18 KiB) Viewed 36 times

anits / MECH2003 FHFYR_2022_ALL_U / Mid Session Test / Mid Session Test Each axis of a two-axis laser cutter utilises a stepper motor with 48 pulses per revolution. For each axis, the output is coupled to a lead screw with a 14:1 gear reduction and has a pitch = 1.1mm. The table is required to travel along a linear trajectory with neither axis exceeding a travel speed of 190 mm/min. To achieve an incremental position of 240mm along the x-axis and 110mm along the y-axis, determine the motor speed (in rpm) required for the y-avis
