ME 236 - Measurements and Engineering Data Analysis 7. [15 pes) Find the missing value in the following thermocouple cir

[answerhappygod]

Me 236 Measurements And Engineering Data Analysis 7 15 Pes Find The Missing Value In The Following Thermocouple Cir 1 (23.92 KiB) Viewed 50 times

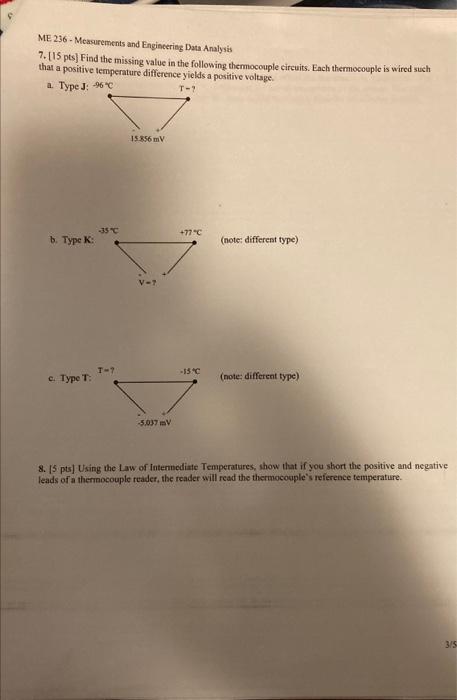

ME 236 - Measurements and Engineering Data Analysis 7. [15 pes) Find the missing value in the following thermocouple circuits. Each thermocouple is wired such that a positive temperature difference yields a positive voltage T- a. Type J: 960 15856 mV -350 b. Type : +77°C (note: different type) V- T-7 -15°C c. Type T (note: different type) -5.037V 8.5 pts) Using the Law of Intermediate Temperatures, show that if you short the positive and negative leads of a thermocouple reader, the reader will read the thermocouple's reference temperature. 3/5
