Which of the following details of a manufacturing drawing are specified by the AS1100 requirements? Select one: O a. A b

[answerhappygod]

Which Of The Following Details Of A Manufacturing Drawing Are Specified By The As1100 Requirements Select One O A A B 1 (43.47 KiB) Viewed 18 times

Which Of The Following Details Of A Manufacturing Drawing Are Specified By The As1100 Requirements Select One O A A B 2 (41.6 KiB) Viewed 18 times

Which Of The Following Details Of A Manufacturing Drawing Are Specified By The As1100 Requirements Select One O A A B 3 (48.3 KiB) Viewed 18 times

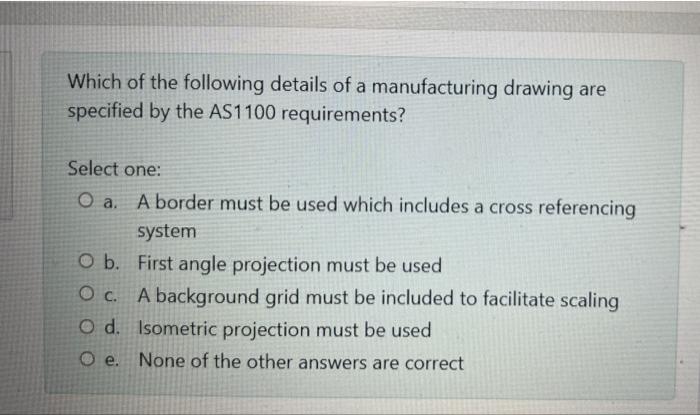

Which of the following details of a manufacturing drawing are specified by the AS1100 requirements? Select one: O a. A border must be used which includes a cross referencing system O b. First angle projection must be used O c. A background grid must be included to facilitate scaling O d. Isometric projection must be used O e. None of the other answers are correct

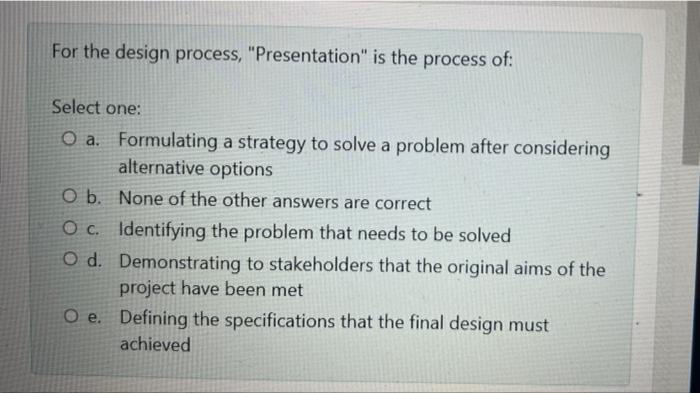

For the design process, "Presentation" is the process of: Select one: O a Formulating a strategy to solve a problem after considering . alternative options O b. None of the other answers are correct O c. Identifying the problem that needs to be solved O d. Demonstrating to stakeholders that the original aims of the project have been met O e. Defining the specifications that the final design must achieved

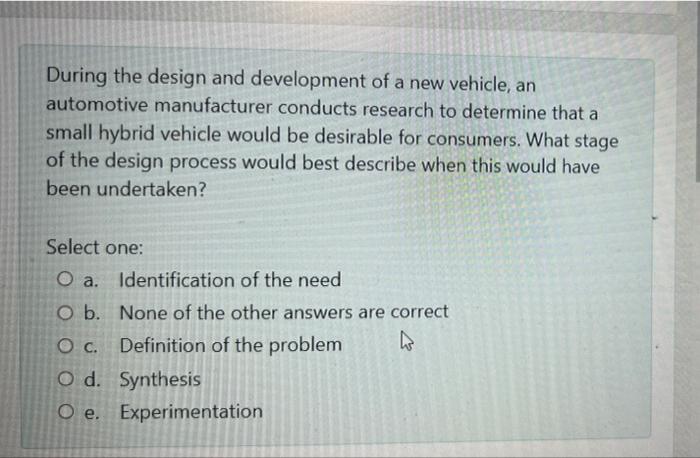

During the design and development of a new vehicle, an automotive manufacturer conducts research to determine that a small hybrid vehicle would be desirable for consumers. What stage of the design process would best describe when this would have been undertaken? Select one: O a. Identification of the need O b. None of the other answers are correct O c. Definition of the problem Ос h O d. Synthesis O e. Experimentation
