Question 60 (4 points) VDD VDD Rg WW 12 Oa Vg R1 1 kg VO Ri + Qc Ob .Rs RS -VSS In the above circuit, the transistor par

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 60 (4 points) VDD VDD Rg WW 12 Oa Vg R1 1 kg VO Ri + Qc Ob .Rs RS -VSS In the above circuit, the transistor par

Post by answerhappygod »

Question 60 4 Points Vdd Vdd Rg Ww 12 Oa Vg R1 1 Kg Vo Ri Qc Ob Rs Rs Vss In The Above Circuit The Transistor Par 1
Question 60 4 Points Vdd Vdd Rg Ww 12 Oa Vg R1 1 Kg Vo Ri Qc Ob Rs Rs Vss In The Above Circuit The Transistor Par 1 (46.9 KiB) Viewed 20 times

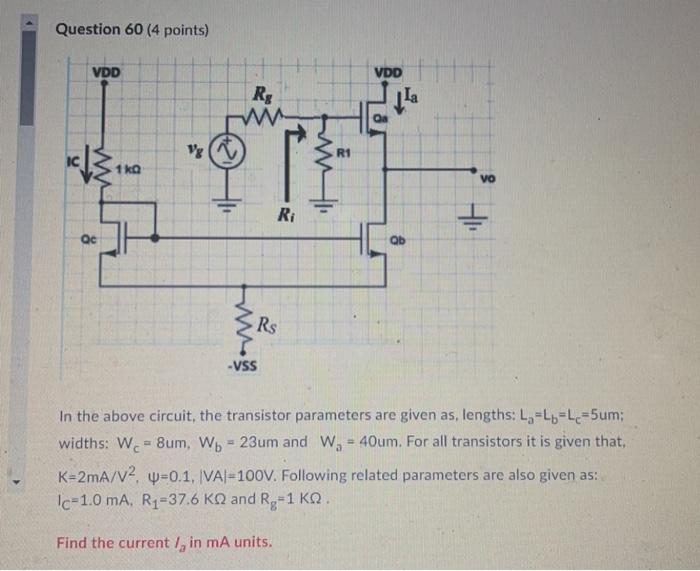

Question 60 (4 points) VDD VDD Rg WW 12 Oa Vg R1 1 kg VO Ri + Qc Ob .Rs RS -VSS In the above circuit, the transistor parameters are given as, lengths: L-L=L=5um: widths: W. - Bum. Wb = 23um and W. - 40um. For all transistors it is given that, K=2mA/V2. =0.1, IVAI=100V. Following related parameters are also given as: c=1.0 mA, R1-37.6 K and Rg-1 KA. Find the current/, in mA units.
