Question 60 (4 points) VDD VDD Rg w Alla Qa V8 R1 w IC 1 kg VO F. Ri Ob Ос ZRs -VSS - In the above circuit, the transist

[answerhappygod]

1 (39.06 KiB) Viewed 28 times

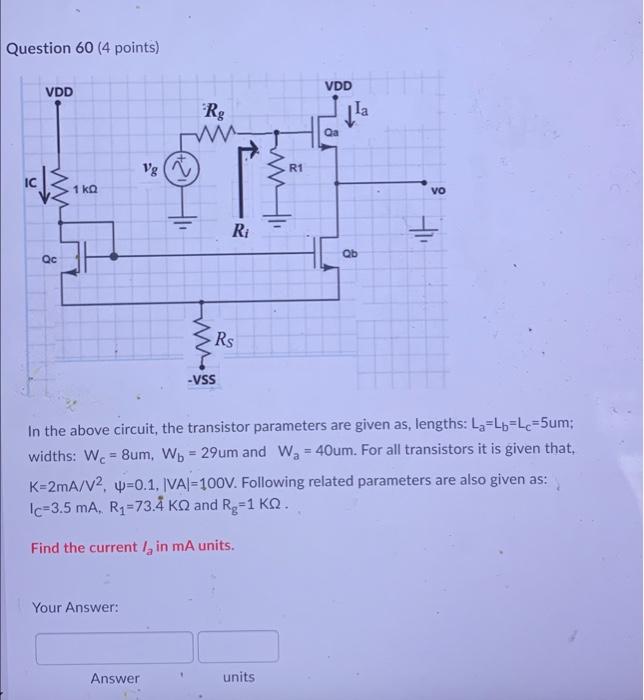

Question 60 (4 points) VDD VDD Rg w Alla Qa V8 R1 w IC 1 kg VO F. Ri Ob Ос ZRs -VSS - In the above circuit, the transistor parameters are given as, lengths: La=Lp=LC-5um; widths: Wc - 8um, Wp = 29 um and Wa = 40um. For all transistors it is given that, K=2mA/V2 v=0.1,|VA|-100V. Following related parameters are also given as: Ic=3.5 mA, R2-73.4 KO) and Rg=1 KQ. Find the current / in mA units. Your Answer: Answer units
