VDD VDD Rg w ta Qa Vg R1 1 ΚΩ w VO IH HH Ri HU Qc Qb Rs -VSS In the above circuit, the transistor parameters are given a
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
VDD VDD Rg w ta Qa Vg R1 1 ΚΩ w VO IH HH Ri HU Qc Qb Rs -VSS In the above circuit, the transistor parameters are given a

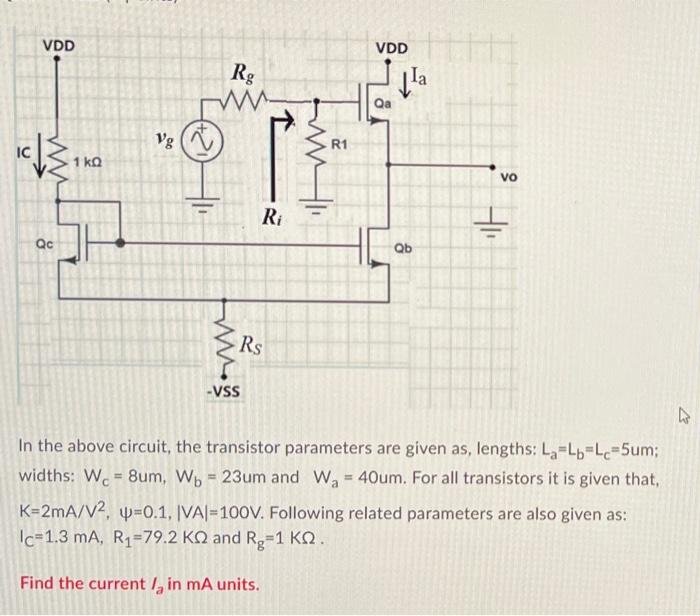

VDD VDD Rg w ta Qa Vg R1 1 ΚΩ w VO IH HH Ri HU Qc Qb Rs -VSS In the above circuit, the transistor parameters are given as, lengths: La=Lb=Lc=5um; widths: W. = 8um, Wo = 23um and Wa = 40um. For all transistors it is given that, K=2mA/V2, U=0.1,|VA|=100V. Following related parameters are also given as: Ic=1.3 mA, R1=79.2 KN and Rg=1 KN. Find the currently in mA units.
