10 V 25 V R1 RC СС Vo CB Rs Vi I VCE w RL VBE - HE W RE1 . Ro Vs Ri R2 RE2 CE -5 V For the above circuit, it is given th

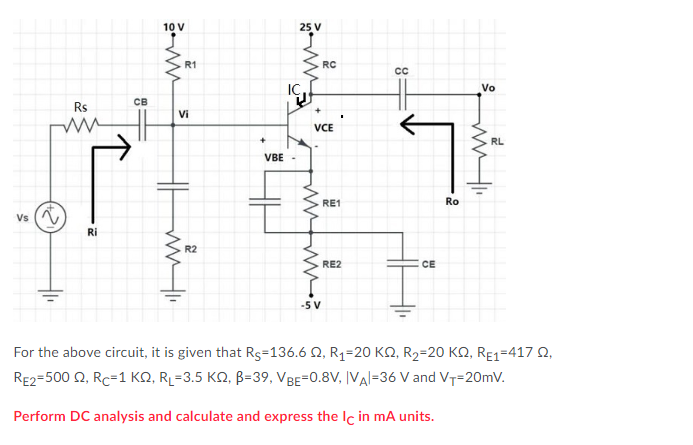

10 V 25 V R1 RC СС Vo CB Rs Vi I VCE w RL VBE - HE W RE1 . Ro Vs Ri R2 RE2 CE -5 V For the above circuit, it is given that Rs=136.6 12, R1=20 KA2, R2=20 KA2, RE1 =4172, Rp2=500 2 Rc=1 K2, R =3.5 K12, B=39, VBE=0.8V, IVAI=36 V and V7=20mv. Perform DC analysis and calculate and express the Ic in mA units.
