Determine the voltage across the resistor, the current in the
resistor, and the output voltage in figure 1 and figure 2 below.
Plot these waveforms with proper phase alignment. 1SR154-400 is a
silicon rectifier 1 ampere diode. Indicate the peak values and the
time occurrence as per calculation.
Determine The Voltage Across The Resistor The Current In The Resistor And The Output Voltage In Figure 1 And Figure 2 1 (31.75 KiB) Viewed 22 times

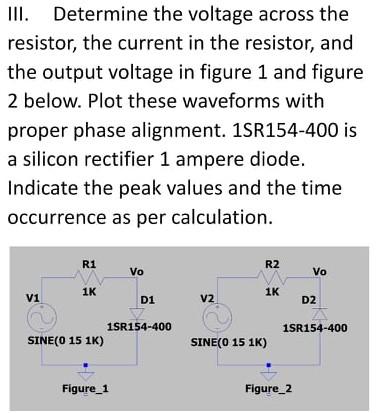

III. Determine the voltage across the resistor, the current in the resistor, and the output voltage in figure 1 and figure 2 below. Plot these waveforms with proper phase alignment. 1SR154-400 is a silicon rectifier 1 ampere diode. Indicate the peak values and the time occurrence as per calculation. R1 R2 Vo Vo 1K 1K vi D1 V2 D2 1SR154-400 SINE(O 15 1K) 1SR154-400 SINE(O 15 1K) Figure_1 Figure_2
