In Part I, you're to explain the structure of a DC Motor (circuit- and mechanic- wise), to explain the circuit parameter

[answerhappygod]

In Part I You Re To Explain The Structure Of A Dc Motor Circuit And Mechanic Wise To Explain The Circuit Parameter 1 (41.75 KiB) Viewed 31 times

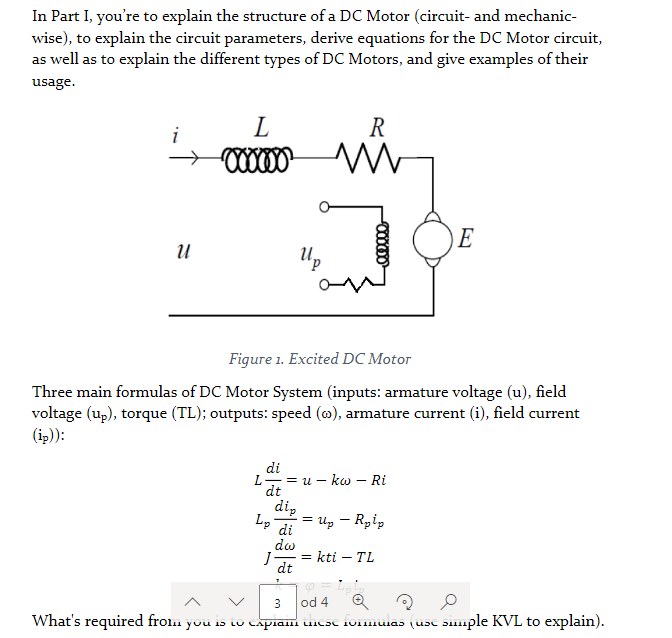

In Part I, you're to explain the structure of a DC Motor (circuit- and mechanic- wise), to explain the circuit parameters, derive equations for the DC Motor circuit, as well as to explain the different types of DC Motors, and give examples of their usage. i R L 000000 M E u ир Figure 1. Excited DC Motor Three main formulas of DC Motor System (inputs: armature voltage (u), field voltage (up), torque (TL); outputs: speed (w), armature current (i), field current (i)): di L=u-kw - Ri dt dir Lp di = Uly – Roig do J kti – TL dt = 3 od 4 a What's required from you is to capiam cc ivrmulas (use simple KVL to explain).
