Q5. A capacitor, inductor and resistor are placed in series with an AC voltage source: 30 V @ 50 Hz a) If the resistor h

Post by answerhappygod »

Q5 A Capacitor Inductor And Resistor Are Placed In Series With An Ac Voltage Source 30 V 50 Hz A If The Resistor H 1
Q5 A Capacitor Inductor And Resistor Are Placed In Series With An Ac Voltage Source 30 V 50 Hz A If The Resistor H 1 (40.72 KiB) Viewed 32 times

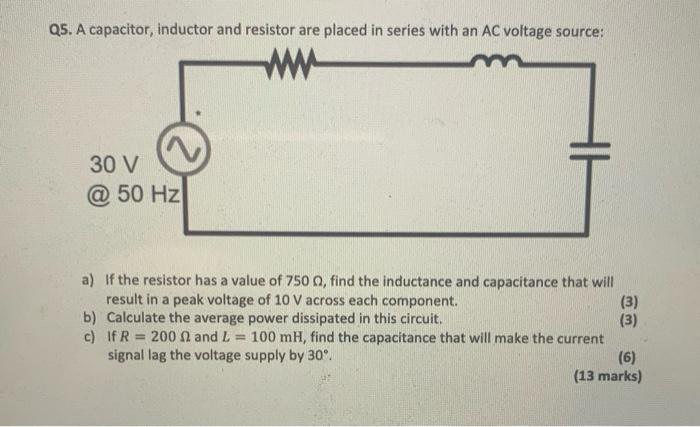

Q5. A capacitor, inductor and resistor are placed in series with an AC voltage source: 30 V @ 50 Hz a) If the resistor has a value of 750 , find the inductance and capacitance that will result in a peak voltage of 10 V across each component. (3) b) Calculate the average power dissipated in this circuit. (3) c) IfR = 200 and L = 100 mH, find the capacitance that will make the current signal lag the voltage supply by 30%. (6) (13 marks)
