In the circuit below, we have two MOSFETS MI and M2 with properties K, and K2, respectively, Assume that both transistor

Post by answerhappygod »

In The Circuit Below We Have Two Mosfets Mi And M2 With Properties K And K2 Respectively Assume That Both Transistor 1
In The Circuit Below We Have Two Mosfets Mi And M2 With Properties K And K2 Respectively Assume That Both Transistor 1 (26.5 KiB) Viewed 43 times

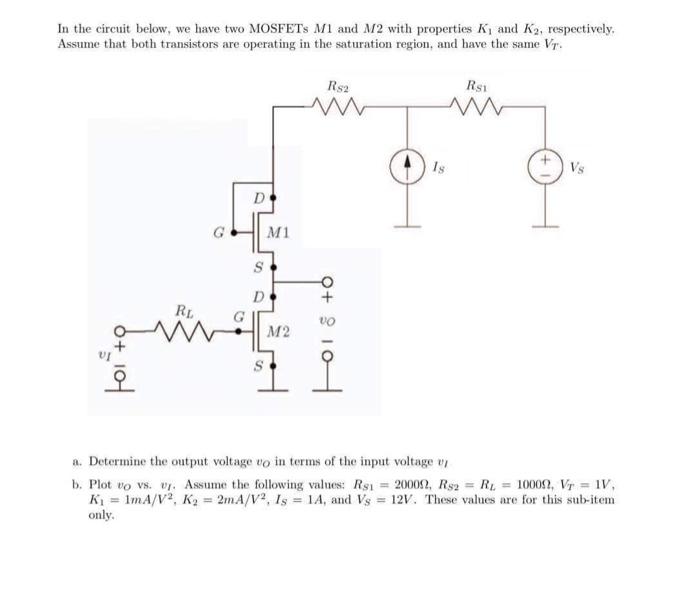

In the circuit below, we have two MOSFETS MI and M2 with properties K, and K2, respectively, Assume that both transistors are operating in the saturation region, and have the same Vr. Rs2 w Rs1 M 18 Vs M1 S S D O+ 9 & +0 RL M2 o+ lol 31 오 a. Determine the output voltage wo in terms of the input voltage b. Plot vo vs. v. Assume the following values: Rs1 = 200092, R2 = Ri= 100092, Vr = 1V. Ki = imA/V2, K2 = 2mA/V2. Is = 1A, and Vs = 12V. These values are for this sub-item only.
