**USE ONLY MATLAB TO SOLVE PLEASE WITH A SIMULINK
MODEL**

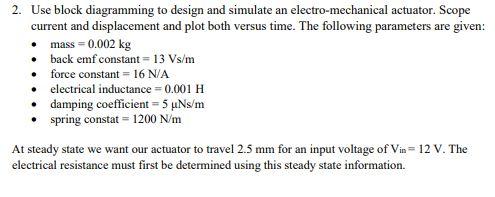

Use Only Matlab To Solve Please With A Simulink Model Use Only Matlab To Solve Please With A Simulink Model 1 (18.88 KiB) Viewed 27 times
**USE ONLY MATLAB TO SOLVE PLEASE WITH A SIMULINK
MODEL**
2. Use block diagramming to design and simulate an electro-mechanical actuator. Scope current and displacement and plot both versus time. The following parameters are given: • mass=0.002 kg • back emf constant = 13 Vs/m • force constant = 16 NA • electrical inductance = 0.001 H • damping coefficient = 5 uNs/m • spring constat = 1200 N/m At steady state we want our actuator to travel 2.5 mm for an input voltage of Vin= 12 V. The electrical resistance must first be determined using this steady state information.
