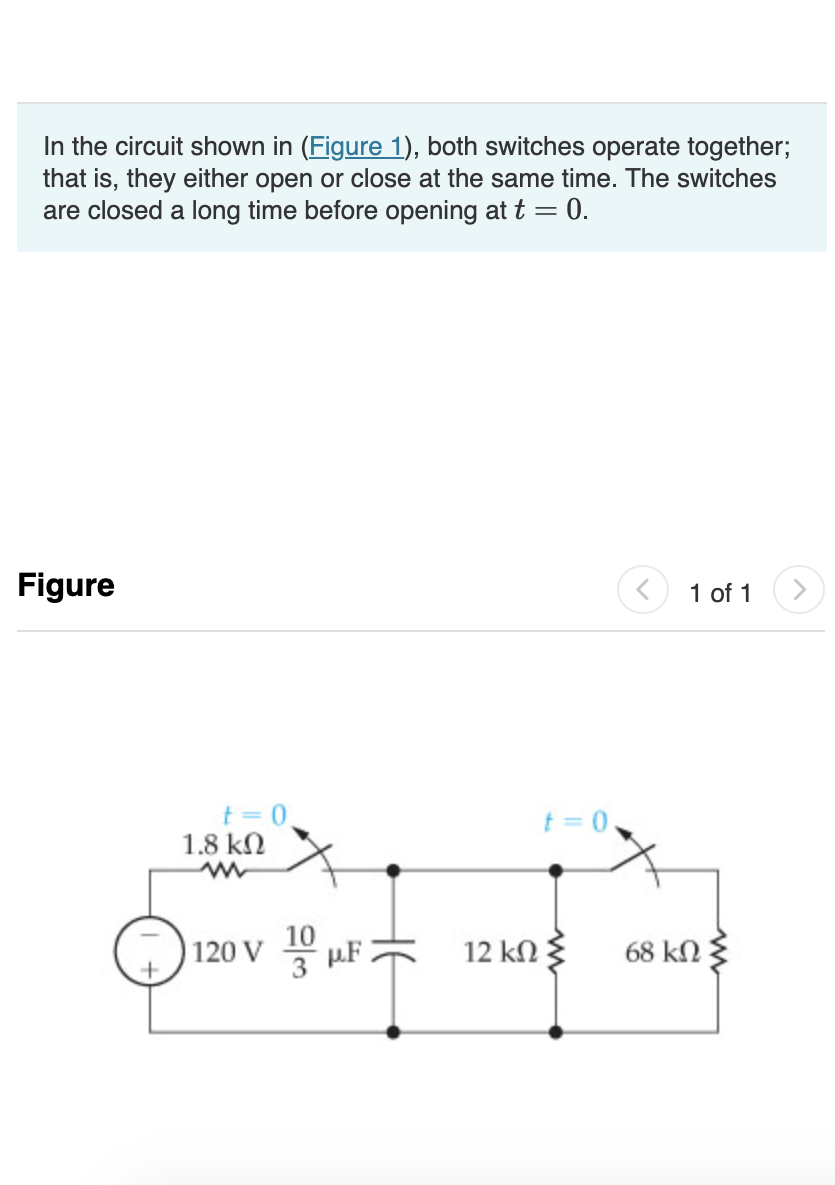

In the circuit shown in (Figure 1), both switches operate together; that is, they either open or close at the same time.

[answerhappygod]

In The Circuit Shown In Figure 1 Both Switches Operate Together That Is They Either Open Or Close At The Same Time 1 (94.25 KiB) Viewed 37 times

How many microjoules of energy have been dissipated in
the 12 kΩkΩ resistor 22 msms after
the switches open? How long does it take to
dissipate 34 %% of the initially stored energy?
In the circuit shown in (Figure 1), both switches operate together; that is, they either open or close at the same time. The switches are closed a long time before opening at t = 0. = Figure 1 of 1 t=0 1.8 k12 t=0 O 120 v 19 HUF 12 k2 68 ΚΩ
